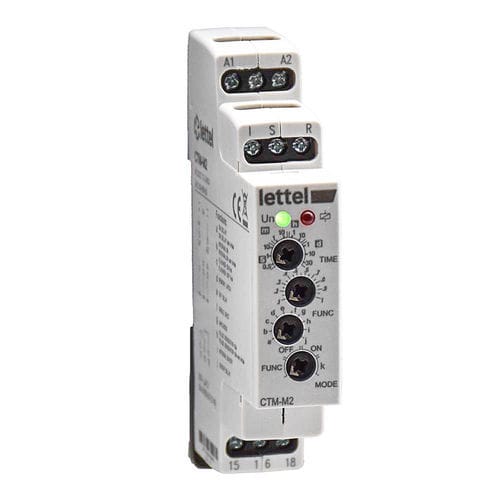

Timer module CTM-M2

The CTM-M2 time delay relay offers 10 electrical functions. It combines simplicity with a compact design: - Electrical: Power supply: 12 to 240 V AC/DC. Start, stop, and pause of timing via external contacts. Single-pole changeover contact 16A/250V. - Programming: 10 available functions, adjustable timing from 0.1s to 10 days, thanks to the time scale. - Physical: 18 mm wide housing, DIN rail mountable. Adjustment by front panel levers. - 10 available functions: Allows activation of devices or electrical circuits for a set period. Numerous functions including symmetrical flasher, start on external contact, delayed contact, etc. - Integration ease: The compact housing, only 1 module wide (18 mm), allows integration into any type of electrical cabinet or distribution board. - Simple programming: The time delay relay is programmed very simply using front panel levers. - Modularity: The 10 available wiring diagrams allow programming to be adapted to the type of application. - Control via external contacts: The ability to pause or stop timing via a dedicated external contact allows interaction with other electrical devices. - Compliance: CE, RoHs, REACH. - Applicable standards: EN61812-1 - Technical Specifications: - Power supply: 12 to 240 V AC/DC - 10 programmable timing functions - Timing adjustable from 0.1s to 10 days - Start, stop, and pause via external contacts - Single-pole changeover contact 16A/250V - 18 mm wide DIN rail mountable housing - Front panel lever adjustment - CE, RoHs, REACH compliant - Standard: EN61812-1
