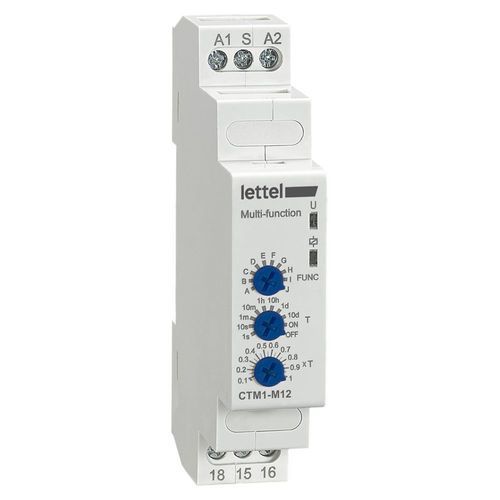

Time delay time relay CTM1-M series

DIN railfront panelhousing

The CTM1-Mx2 time delay relay offers 10 electrical functions. It combines simplicity with a compact design: - Electrical: Power supply: 12 … 240 V AC/DC. Timing starts when powered on or via external contact. Single-pole or double-pole changeover contact 16A/250V. - Programming: The timer offers 10 available functions, adjustable timing from 0.1s to 10 days, thanks to the time scale. - Physical: 18 mm wide housing, DIN rail mountable. Settings via front panel levers. Indicator lights show timer power (green LED) and relay status (red LED). - 10 available functions: The timer allows you to operate devices or electrical circuits for a set period. Many functions available including symmetrical flasher, start on external contact, delayed contact, etc. - Advantages: Easy integration: The compact housing, only 1 module wide (18 mm), allows integration into any type of electrical cabinet or distribution board. Simple programming: The time delay relay is programmed very simply using front panel levers. Modularity: The 10 available wiring diagrams allow programming to be adapted to the type of application. - Standards and certifications: Compliance: CE, RoHs, REACH. Applicable standards: EN61812-1 Variants and order codes: Order code | Contact type | Stocked product CTM1-M12 | 1x NO/NC | In stock CTM1-M22 | 2x NO/NC | In stock - Technical specifications: Power supply: 12 … 240 V AC/DC Timing range: 0.1s to 10 days Contact type: Single-pole or double-pole changeover, 16A/250V Width: 18 mm (1 module) Mounting: DIN rail Programming: 10 functions, adjustable via front panel levers Indicators: Green LED (power), Red LED (relay status) Compliance: CE, RoHs, REACH Standard: EN61812-1
