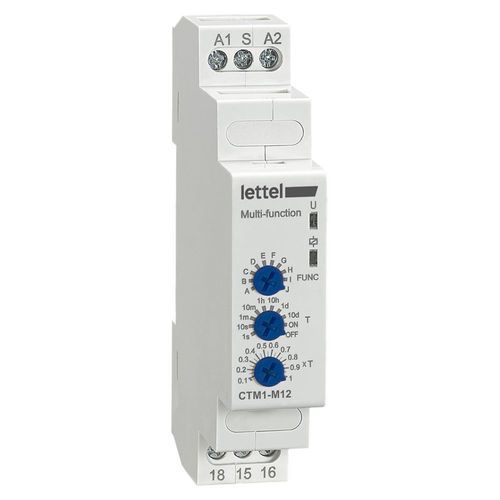

Digital timer CTM1-Mx2 series

electronicflashingmulti-function

Description
Multifunction timer with 1 or 2 contacts. The CTM1-Mx2 time relay offers 10 electrical functions in a compact design, combining simple setup with small footprint.

Specifications

• Electrical: supply 12 … 240 V AC/DC. Timing starts at power-on or via external contact. Single-pole or double-pole changeover contact 16 A / 250 V.
• Programming: 10 available functions, adjustable time range from 0.1 s to 10 days using the time-scale selector.
• Mechanical: 18 mm width housing, clip-on DIN-rail mounting. Front-panel rotary selectors for settings. Indicator LEDs: green (power) and red (relay status).

Functions

• 10 selectable functions: used to switch devices or circuits for a defined duration. Examples: symmetric flasher, start on external contact, delayed contact, and other timing schemes available to adapt to applications.

Advantages

• Easy integration: compact housing (1 module, 18 mm) for cabinets and enclosures.
• Simple programming: front-panel selectors for quick adjustment.
• Modularity: 10 electrical schemes to suit various applications.

Standards and certifications

• Compliances: CE, RoHS, REACH.
• Applicable standard: EN61812-1.

Variants and ordering codes
Ordering code | Contact type | Stock status
CTM1-M12 | 1x NO/NC | in stock
CTM1-M22 | 2x NO/NC | in stock

Downloads (available documents)

• Product sheet (CTM1-Mx2)
• CTM range presentation
• General catalogue
• User manual

Technical specifications

• Supply: 12 … 240 V AC/DC
• Timing: adjustable from 0.1 s to 10 days (time-scale)
• Functions: 10 electrical functions (including symmetric flasher, start on external contact, delayed contact, ...)
• Contacts: 1x NO/NC (CTM1-M12) or 2x NO/NC (CTM1-M22), changeover 16 A / 250 V
• Mounting: clip-on DIN-rail
• Housing width: 18 mm (1 module)
• Settings: front-panel rotary selectors
• Indicators: green LED (power), red LED (relay status)
• Compliances: CE, RoHS, REACH
• Standard: EN61812-1
