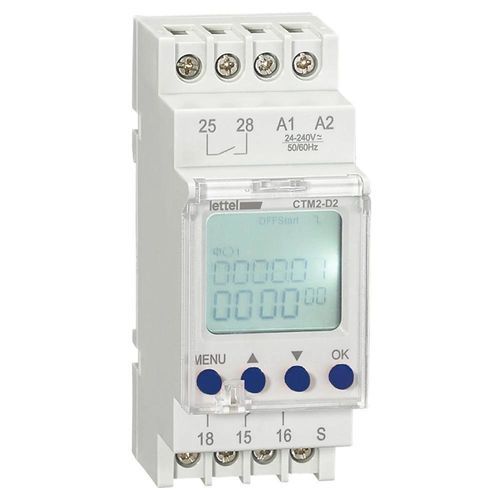

Digital timer CTM2-D series

multi-functionDIN raildual-display

The CTM2-D timer relay offers 24 electrical functions: - Electrical: Power supply from 24 to 240V. Timer starts on power-up or by external contact. 1 NO/NC contact 8A/250V and 1 NO contact 8A/250V. - 1 or 2 channels: CTM2-D1: Common programming for both contacts, switching simultaneously. CTM2-D2: Each contact switches according to independent programming. - Programming: 24 available functions, 2 adjustable timers from 0.1s to 99h 59m 59s. LCD display allows programming to 1/10th of a second and shows current timing and function used. Settings menu protected by password. - Physical: LCD display, 36 mm wide housing, DIN rail mountable. - Features: 24 available functions: allows devices or electrical circuits to be activated for a set duration. Numerous functions including asymmetric flasher, start on external contact, pause, etc. - Standards and certifications: Compliance: CE, RoHs, REACH. Applicable standards: EN61812-1 - Variants and order codes: Order Code | Number of Channels | Product Stocked CTM2-D1 | 1 | instock CTM2-D2 | 2 | instock - Characteristics / Technical Specifications: Power supply: 24 to 240V Number of functions: 24 Number of channels: 1 or 2 (depending on model) Contacts: 1 NO/NC 8A/250V + 1 NO 8A/250V Adjustable timing: from 0.1s to 99h 59m 59s Display: LCD Programming: to 1/10th of a second, menu protected by password Housing width: 36 mm Mounting: DIN rail Compliance: CE, RoHs, REACH Standard: EN61812-1
