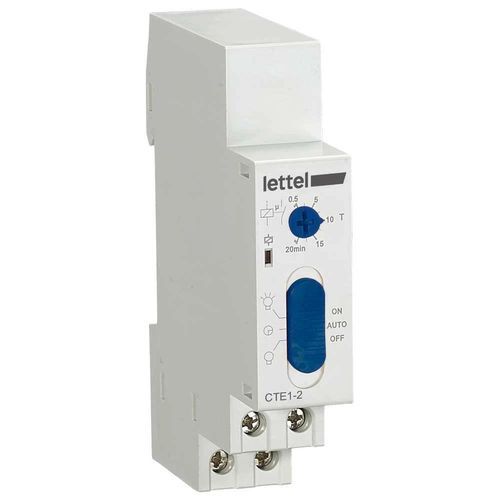

Time switch CTE1-2

The CTE1-2 timer is equipped with a timed relay, adjustable up to 20 minutes, activated by an external contact. It is mainly used to control and time the lighting of a staircase or public place, but also for controlling bathroom fans. - Electrical characteristics: - Power supply: 220 to 240V AC. - Timing starts on external contact closure. - Connection: 3 or 4 wires. - Contact No. 16A. - Programming: - 3 operating modes: permanent ON, permanent OFF & AUTO. - Adjustable timing: 0.5 to 20 minutes. - Settings via front lever. - Physical characteristics: - Housing width: 1 module. - Applications: - The CTE1-2 timer's timing starts on external contact closure. - It is generally used to control and time the lighting of a staircase or public place, but also for controlling bathroom fans. - Standards and certifications: - Compliance: CE, RoHs, REACH. - Applicable standards: EN61812-1, IEC 60669-2-3, IEC60947-5-1. - Features / Technical specifications: - Power supply: 220 to 240V AC - Contact: 16A - Connection: 3 or 4 wires - Housing width: 1 module - Adjustable timing: 0.5 to 20 minutes - 3 operating modes: permanent ON, permanent OFF, AUTO - Front lever adjustment - Compliance: CE, RoHs, REACH - Standards: EN61812-1, IEC 60669-2-3, IEC60947-5-1
