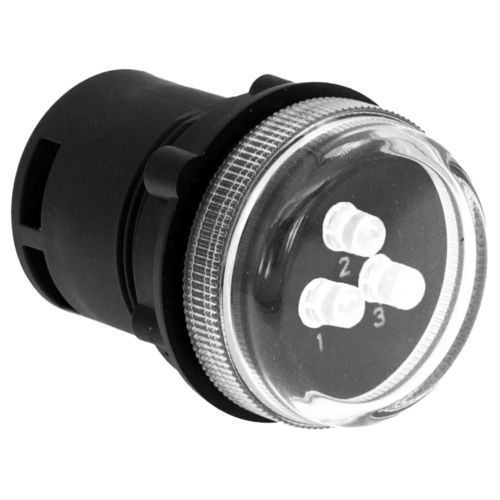

LED indicator light SVE3-WWW

panel-mountsignalingthree-phase voltage

The SVE3 tri-LED indicator light shows the voltage presence on each phase of a three-phase circuit: - Electrical Characteristics: - Neutral connection is optional. - Supply voltage 230V between phase and neutral or 400V between phases. - LED lifespan >40,000 hours - Physical Characteristics: - Tri-LED indicator light with 3 white LEDs, to be embedded in a 30 mm diameter cutout. - Connection via screw terminals. - Advantages: - Typically installed on a control panel or an electrical cabinet door, this tri-LED indicator light allows visualization of the power status of the 3 phases of a three-phase circuit. - In case of a power outage on one phase, this tri-LED indicator light offers the advantage of indicating the faulty phase. - Standards and Certifications: - Compliance: CE, RoHs, Reach. - Applicable standard: EN60947-5-1. - Resources: - Switching and light signaling - Features / Technical Specifications: - Model: SVE3-WWW - Type: Tri-LED indicator light - Number of LEDs: 3 white - Cutout diameter: 30 mm - Connection: Screw terminals - Supply voltage: 230V (phase/neutral) or 400V (between phases) - LED lifespan: >40,000 hours - Compliance: CE, RoHs, Reach - Standard: EN60947-5-1
