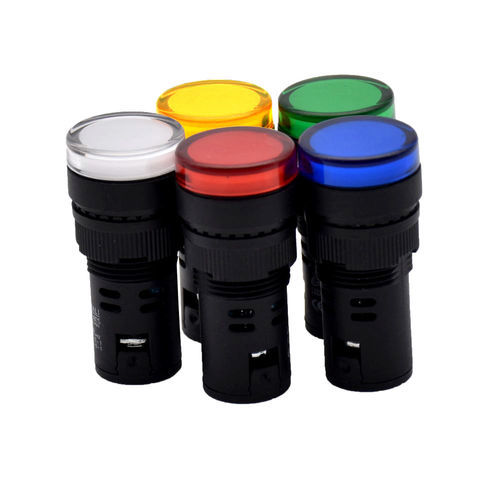

LED indicator light SVE1-16 MONO LED

panel-mountIP67AC/DC

Overview
The SVE1-16 LED indicator, powered from 12 to 400 V, provides visual signalling of an electrical state on a control panel or an electrical cabinet door.

Specifications

• Electrical: Supply voltage: 12 VAC/VDC, 24 VAC/VDC, 48 VAC/VDC, 230 VAC or 400 VAC. LED lifetime: 50,000 hours. Current consumption: 5 mA.
• Physical: Panel-mount indicator for Ø16 mm cut-out. Ingress protection: IP67. LED brightness: ≥60 cd/m².
• Applicable standards: EN55015:2019, EN61547:2009, EN61000-3-2:2019, EN61000-3-3:2013+A1.

Functions

• Visual indicator to signal an electrical state (suitable for control panels or electrical cabinet doors).

Benefits

• High brightness provided by a performance LED.
• Sealed design (IP67) for indoor or outdoor installation depending on application.
• Long LED lifetime (≥50,000 h).

Standards and certifications

• Conformities: CE, RoHS, REACH.

Variants and ordering codes

• Code | Supply voltage | LED colour | Availability
• SVE1-16-W12 | 12 VAC/VDC | White | In stock
• SVE1-16-B12 | 12 VAC/VDC | Blue | In stock
• SVE1-16-Y12 | 12 VAC/VDC | Yellow | In stock
• SVE1-16-R12 | 12 VAC/VDC | Red | In stock
• SVE1-16-G12 | 12 VAC/VDC | Green | In stock
• SVE1-16-W24 | 24 VAC/VDC | White | In stock
• SVE1-16-B24 | 24 VAC/VDC | Blue | In stock
• SVE1-16-Y24 | 24 VAC/VDC | Yellow | In stock
• SVE1-16-R24 | 24 VAC/VDC | Red | In stock
• SVE1-16-G24 | 24 VAC/VDC | Green | In stock
• SVE1-16-W48 | 48 VAC/VDC | White | In stock
• SVE1-16-B48 | 48 VAC/VDC | Blue | In stock
• SVE1-16-Y48 | 48 VAC/VDC | Yellow | In stock
• SVE1-16-R48 | 48 VAC/VDC | Red | In stock
• SVE1-16-G48 | 48 VAC/VDC | Green | In stock
• SVE1-16-W230 | 230 VAC | White | In stock
• SVE1-16-B230 | 230 VAC | Blue | In stock
• SVE1-16-Y230 | 230 VAC | Yellow | In stock
• SVE1-16-R230 | 230 VAC | Red | In stock
• SVE1-16-G230 | 230 VAC | Green | In stock
• SVE1-16-G400 | 400 VAC | Green | In stock
• SVE1-16-R400 | 400 VAC | Red | In stock
• SVE1-16-Y400 | 400 VAC | Yellow | In stock
• SVE1-16-B400 | 400 VAC | Blue | In stock
• SVE1-16-W400 | 400 VAC | White | In stock

Documents available (PDF)

• SV indicator presentation (PDF, 1.63 MB).
• General catalogue (PDF, 33.71 MB).
• SVE1-16 product sheet (PDF, 0.68 MB).

Related products / accessories

• Sealing cap: SVE1-O.
• Tightening key: SVE1-SE.
• Label holder: SVE1-PE.

Characteristics / technical specifications

• Available voltages: 12 VAC/VDC, 24 VAC/VDC, 48 VAC/VDC, 230 VAC, 400 VAC.
• Current consumption: 5 mA.
• LED lifetime: 50,000 hours.
• Panel cut-out: Ø16 mm.
• Ingress protection: IP67.
• Brightness: ≥60 cd/m².
• Standards: EN55015, EN61547, EN61000-3-2, EN61000-3-3.
• Conformities: CE, RoHS, REACH.
