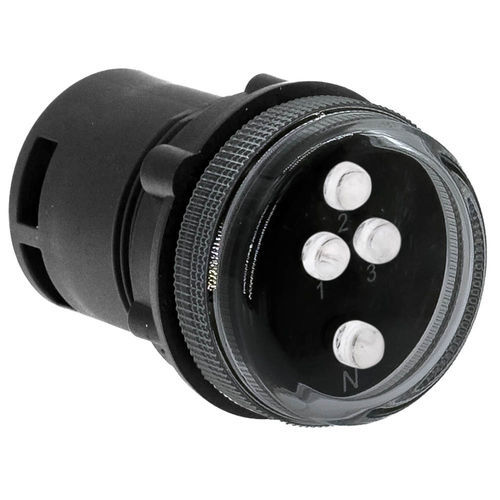

LED indicator light SVE4-WWWW

flush-mountpanel-mountIP20

Overview
Indicator SVE4 with 4 white LEDs for three-phase or tetra networks, panel-mount cut-out Ø30 mm, reliable and visible industrial signalling.

Electrical characteristics

• Supply with or without neutral (neutral connection optional)
• Supply voltage: 230 V between phase and neutral or 400 V between phases
• Compatible with three-phase or tetra networks
• LED lifetime > 40 000 h

Physical characteristics

• Cut-out diameter 30 mm
• Connection via screw terminals
• Rugged enclosure for flush mounting
• Customization available (voltages and LED colors on request)

Functions

• Applications: designed for industrial control panels, distribution boards, control cabinets and installations requiring clear and precise visual feedback on the status of three-phase or tetra networks
• Safety: terminal cover for IP2X compliance

Standards and certifications

• Compliances: CE, RoHS, REACH
• Applicable standard: EN60947-5-1

Resources

• Product brochure / datasheet available (product presentation document)

Technical specifications

• Model: SVE4-WWWW
• Number of LEDs: 4
• LED color: white
• Panel cut-out: Ø 30 mm
• Supply voltages: 230 V (phase-neutral) or 400 V (phase-phase)
• Network compatibility: three-phase / tetra
• Connection: screw terminals
• LED lifetime: > 40 000 h
• Terminal protection: terminal cover (IP2X compliance)
• Enclosure: rugged for flush mounting
• Customization: voltages and LED colors available on request
• Compliances: CE, RoHS, REACH
• Standard: EN60947-5-1
