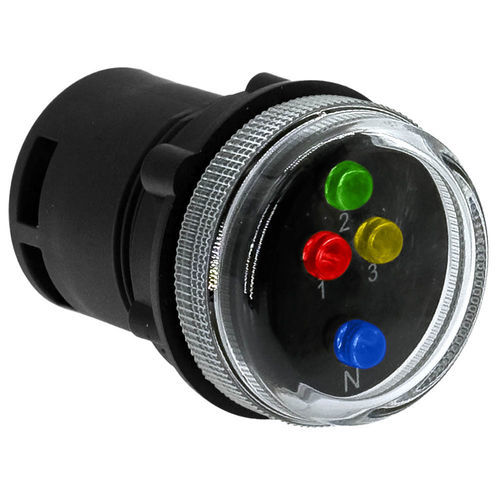

LED indicator light SVE4-RGYB

panel-mountrobustIP2X

Description
SVE4 4-LED multicolour indicator (red, green, yellow and blue) designed for conductor visualisation on control panels and switchboards. Suited for three-phase or tetra networks, it allows the corresponding LED to extinguish in case of voltage loss for quick anomaly identification.

Electrical characteristics

• Supply with or without neutral (neutral connection optional)
• Supply voltage 230 V between phase and neutral or 400 V between phases
• Compatible with three-phase or tetra networks
• LED lifetime > 40 000 hours

Physical characteristics

• Cutout diameter 30 mm
• Connection by screw terminals
• Robust body for flush mounting
• Customisation available (voltages and LED colours on request)

Functions & applications

• Visualisation of conductor status and quick identification of voltage losses
• Typical applications: control panels, distribution boards, control enclosures for machines and electrical infrastructures
• Safety: terminal cover for IP2X compliance

Standards and certifications

• Compliances: CE, RoHS, REACH
• Applicable standard: EN 60947-5-1

Resources

• Technical documents: Switching and light signalling

Characteristics / technical specifications

• Model: SVE4
• Product reference (presented variant): SVE4-RGYB
• Cutout: Ø30 mm
• Supply voltage: 230 V (phase-neutral) or 400 V (between phases)
• Network compatibility: three-phase or tetra
• Connection: screw terminals
• LED lifetime: > 40 000 hours
• Terminal protection: IP2X (terminal cover)
• Compliances: CE, RoHS, REACH
• Standard: EN 60947-5-1
• Options: custom voltages and LED colours on request
