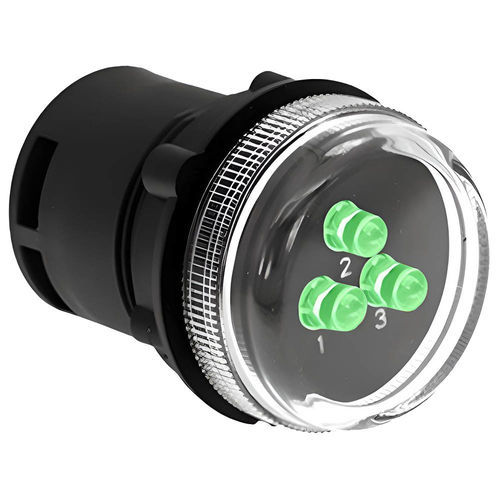

LED indicator light SVE3-GGG

flush-mountrobustsignaling

Description
Green tri-LED indicator intended for industrial signaling and visual feedback of three-phase or 4‑wire networks.

Characteristics

• Electrical:
  • Supply with or without neutral (neutral connection optional)
  • Supply voltage: 230 V between phase and neutral or 400 V between phases
  • Compatible with three-phase or 4‑wire systems
  • LED lifetime > 40 000 hours
• Physical:
  • Panel cut-out diameter: Ø 30 mm
  • Connection by screw terminals
  • Robust body for flush mounting
  • Customization available (voltages and LED colors on request)

Functionalities

• Applications: Use in industrial control panels, distribution boards, control enclosures and any installation requiring clear visual feedback on the status of three-phase or 4‑wire networks. Suitable for machines, electrical infrastructures and equipment requiring quick and reliable monitoring.
• Safety: Terminal cover for IP2X compliance.

Standards and certifications

• Compliances: CE, RoHS, REACH
• Applicable standard: EN 60947-5-1

Resources

• Datasheet: Switching and luminous signalling

Technical characteristics / specifications

• Model: SVE3-GGG
• Type: Tri-LED indicator, 3 LEDs (green)
• Supply: 230 V (phase-neutral) or 400 V (between phases)
• Compatible networks: Three-phase, 4‑wire
• Mounting hole: Ø 30 mm
• Connection: Screw terminals
• LED lifetime: > 40 000 h
• Compliances: CE, RoHS, REACH
• Standard: EN 60947-5-1
• Terminal protection: terminal cover IP2X
