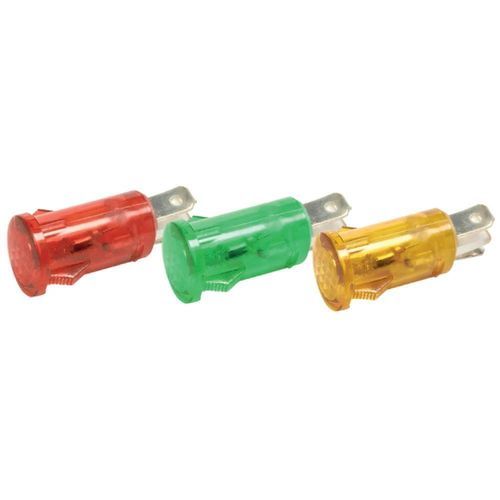

LED indicator light S64 series

flush-mountcompact

Applications: - Indicator lights are used to signal the power-on of an electrical device or the status of a specific circuit. Features: - Cut-out diameter Ø12 mm - Connection with 6.3 tabs - Fixation with wings Available Variants: - Voltage from 6 to 400V - Connection with 4.8 tabs - Lens color: blue, orange, red, green, white, or yellow Advantages: - Compactness - Low cost Variants and Order Codes: - Order Code: S64-TM63-L24A, LED Color: Orange, Supply Voltage: 24 V AC/DC, Stock: instock - Order Code: S64-TM63-N230A, LED Color: Orange, Supply Voltage: 230 V AC, Stock: instock - Order Code: S64-TM63-L24R, LED Color: Red, Supply Voltage: 24 V AC/DC, Stock: instock - Order Code: S64-TM63-N230R, LED Color: Red, Supply Voltage: 230 V AC, Stock: instock - Order Code: S64-TM63-L24G, LED Color: Green, Supply Voltage: 24 V AC/DC, Stock: instock - Order Code: S64-TM63-F230G, LED Color: Green, Supply Voltage: 230 V AC, Stock: instock Technical Specifications: - Cut-out diameter: Ø12 mm - Connection: 6.3 or 4.8 tabs depending on variant - Fixation: with wings - Supply voltage: from 6 to 400V depending on variant - Available lens colors: blue, orange, red, green, white, yellow - Compact and economical product
