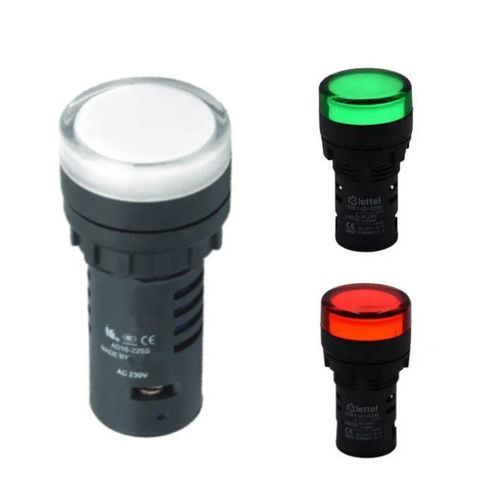

LED indicator light SVE1-22 BI LED

flush-mountIP65IP68

The SVE1-22 dual LED indicator light offers high brightness and long lifespan: - **Electrical:** - Supply voltage: 24VAC/DC or 230VAC. - 3 screw terminals: 1 common and 1 per LED color - LED lifespan: 40,000 hours. - Consumption: 5 mA. - **Physical:** - Flush mount in a 22 mm diameter cutout. - Nut fastening. - Protection rating: IP67. - LED brightness: ≥60 cd/m². - **Indicator Light:** - This **red and green BI-LED** indicator light signals the status of an electrical circuit. It is typically installed on a control panel or an electrical cabinet door. - **High Brightness:** - SVE1 indicator lights are equipped with high brightness LEDs. - **Waterproof:** - With an IP65 protection rating, this indicator light can be safely installed outdoors. - **Long Lifespan:** - LEDs have a minimum lifespan of 40,000 hours. - **Compliance:** - CE, RoHs, Reach. - **Accessories:** - Available accessories: - Blanking plugs SVE1-O - Wrench keys SVE1-SE - Label holders SVE1-PE **Variants and Order Codes:** - **Order Code** | **Supply Voltage** | **Product Stocked** - SVE1-22-RG24 | 24 VAC/DC | instock - SVE1-22-RG230 | 230 VAC | instock **Features / Technical Specifications:** - Type: Red/Green BI LED Indicator Light - Cutout Diameter: 22 mm - Supply Voltage: 24VAC/DC or 230VAC - Protection Rating: IP65 (IP67 mentioned in physical characteristics) - LED Lifespan: ≥40,000 hours - LED Brightness: ≥60 cd/m² - Consumption: 5 mA - Fastening: Nut - Compliance: CE, RoHs, Reach - Available Accessories: Blanking plugs SVE1-O, Wrench keys SVE1-SE, Label holders SVE1-PE
