LED indicator light SVE3-RGY

flush-mountpanel-mountround

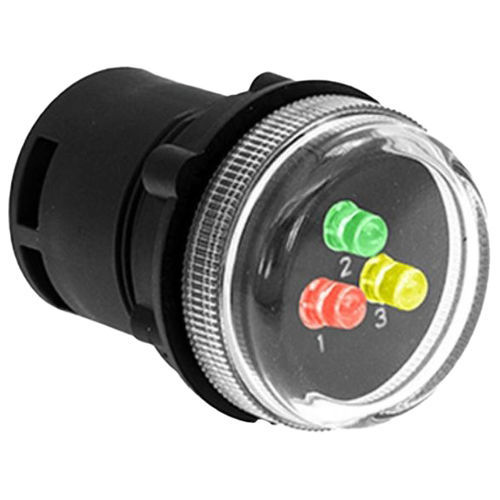

The tri-LED indicator light SVE3 shows the voltage presence on each phase of a three-phase circuit: - **Electrical Characteristics:** - Neutral connection is optional. - Supply voltage 230V between phase and neutral or 400V between phases. - LED lifespan >40,000 hours. - **Physical Characteristics:** - Tri-LED indicator light with 3 red, green, yellow LEDs; to be embedded in a 30 mm diameter cutout. - Connection via screw terminals. - **Advantages:** - Typically installed on a control panel or an electrical cabinet door, this 3-LED indicator allows visualization of the power status of the 3 phases of a three-phase circuit. - In case of a power cut on one phase, this tri-LED indicator light offers the advantage of indicating the faulty phase. - **Standards and Certifications:** - Compliances: CE, RoHs, Reach. - Applicable standard: EN60947-5-1. - **Resources:** - Switching and light signaling - **Features / Technical Specifications:** - Type: Tri-LED indicator light - LED Colors: Red, Green, Yellow - Mounting: To be embedded, 30 mm diameter cutout - Power Supply: 230V (phase-neutral) or 400V (between phases) - LED Lifespan: >40,000 hours - Connection: Screw terminals - Standards: CE, RoHs, Reach, EN60947-5-1
