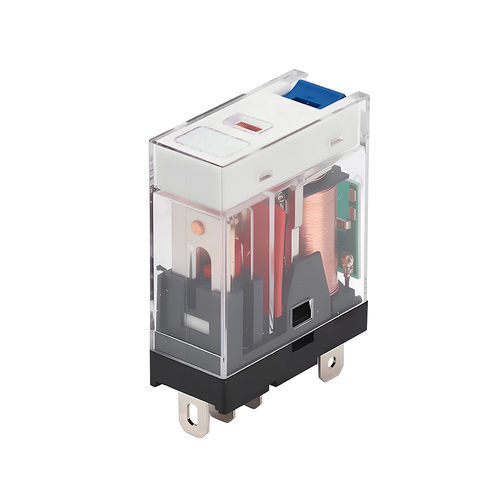

24VDC electromechanical relay CRJ-1S series

230VAC24VAC12VDC

Overview
Plug-in industrial relay 1 NO / 1 NC 12 A with LED, test lever and integrated diode. Available coil voltages from 12 VDC to 230 VAC. DIN-rail mounting, compact format.

Characteristics

• Contacts :
  • Configuration: 1 NO / 1 NC
  • Rated current: 12 A
  • Maximum switching voltage: 230 VAC / 30 VDC
• Housing and mounting :
  • Mounting: on DIN-rail support (16 mm width)
  • Connection: screw terminals
  • Position indicator: mechanical
  • Status indicator: LED
  • Functions: test lever and forced operation
  • Accessories: retaining clip included
  • Compatible with jumper combs for potential distribution
• Electrical :
  • Coil voltages available: 24 VAC, 48 VAC, 230 VAC, 12 VDC, 24 VDC, 48 VDC
  • Consumption: < 0.9 W
  • Electrical life: 100,000 cycles
  • Mechanical life: AC: 30,000,000 cycles; DC: 50,000,000 cycles
  • Protection: integrated diode

Features

• Allows reliable switching and control of electrical circuits.
• Immediate status visualization via mechanical indicator and LED.
• Integrated lever for test and forced operation, facilitating maintenance and diagnostics.
• Integrated protection diode to secure the coil against voltage spikes.

Applications

• Industrial automation
• Control panels
• Control systems for load switching, command/power interface, signalling and safety

Installation

• Use with a compatible plug-in base, clip-on to DIN-rail.
• Easy insertion on the base and connection by screw terminals.
• Jumper combs available to facilitate potential distribution and labelling in panels.
• Retaining clip supplied to secure the unit on the base in vibrating environments.

Variants and ordering codes
Order code | Coil voltage | Stock status
CRJ-1SLT24 | 24 VAC | instock
CRJ-1SLT48 | 48 VAC | instock
CRJ-1SLT230 | 230 VAC | instock
CRJ-1SLTD12 | 12 VDC | instock
CRJ-1SLTD24 | 24 VDC | instock
CRJ-1SLTD48 | 48 VDC | instock

Related products (example accessories)

• Mounting base (screw terminal base)
• Jumper combs

Technical specifications

• Model: CRJ-1S
• Contact configuration: 1 NO / 1 NC
• Rated contact current: 12 A
• Maximum switching voltage: 230 VAC / 30 VDC
• Coil voltages available: 12 VDC, 24 VDC, 48 VDC, 24 VAC, 48 VAC, 230 VAC
• Coil consumption: < 0.9 W
• Electrical life: 100,000 cycles
• Mechanical life: AC 30,000,000 cycles / DC 50,000,000 cycles
• Position indicator: mechanical
• Status indicator: LED
• Functions: test lever, forced operation
• Connection: screw terminals
• Mounting: plug-in base on DIN-rail (16 mm width)
• Accessories supplied: retaining clip
• Coil protection: integrated diode
