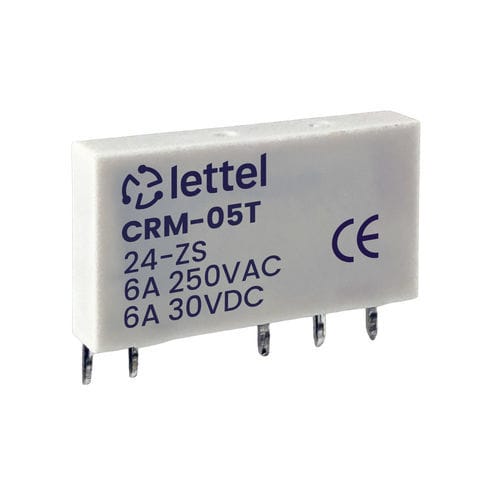

24VDC electromechanical relay CRM-05T series

60VDC12VDCminiature

Description
Miniature plug-in industrial relay rated 6 A for reliable switching between control and power circuits. High sensitivity and very low coil consumption to optimize the energy performance of installations. Built-in diode for surge protection.

General specifications

• Contact type: 1x NO/NC
• Breaking capacity AC: 6 A / 250 VAC
• Breaking capacity DC: 6 A / 30 VDC
• Inrush current: 80 A

Housing and mounting

• Plug-in relay (socket not included)
• Compact design: 28 x 15 x 5 mm
• Mechanical life: 20 × 10^6 cycles

Electrical

• Coil voltages available: 12 VDC / 24 VDC / 60 VDC
• Consumption: < 0.22 W
• Electrical life: 6 × 10^4 cycles
• Protection: built-in diode

Features
The CRM-05T provides reliable switching between control and power circuits. Its high sensitivity enables activation with low power consumption. The integrated diode protects against voltage spikes, improving relay and driven equipment durability.

Applications
Used in industrial automation systems, control equipment and electrical installations requiring a compact and reliable solution. Particularly suitable for integration on existing relay sockets.

Installation
Designed for plug-in mounting on a compatible relay socket. Allows quick replacement without wiring changes to facilitate maintenance and reduce downtime.

Variants and ordering codes
Ordering code — Coil voltage — Rated current — Stock status
CRM-05T12 — 12 VDC — 6 A — in stock
CRM-05T24 — 24 VDC — 6 A — in stock
CRM-05T60 — 60 VDC — 6 A — in stock

Technical characteristics / specifications

• Model reference: CRM-05T
• Contacts: 1x NO/NC
• AC breaking capacity: 6 A / 250 VAC
• DC breaking capacity: 6 A / 30 VDC
• Inrush current: 80 A
• Coil voltages available: 12 VDC, 24 VDC, 60 VDC
• Coil consumption: < 0.22 W
• Coil protection: built-in diode
• Electrical life: 6 × 10^4 cycles
• Mechanical life: 20 × 10^6 cycles
• Dimensions: 28 × 15 × 5 mm
• Mounting: plug-in (socket not included)
