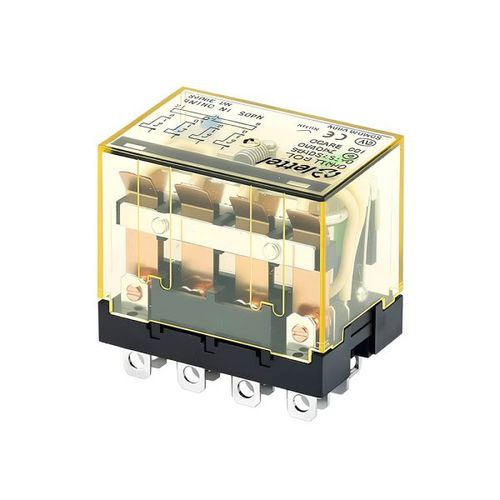

24VDC electromechanical relay CRU-4C series12VDC230VAC380VAC
Add to favorites
Compare this product
Characteristics
- Control voltage
- 24VDC, 12VDC, 230VAC, 380VAC, 24VAC, 48VDC, 48VAC
- Contact configuration
- 4 NO/NC
- Mounting
- DIN rail
- Terminal strip
- plug-in, screw
- Other characteristics
- with LED indicator
- Switching current
Min.: 10 A
Max.: 10 A
- Output current
Min.: 10 A
Max.: 10 A
- Width
Min.: 28 mm
(1.1 in)Max.: 28 mm
(1.1 in)
Description
Overview
Plug-in industrial relay CRU-4C 10 A – 4x NO/NC – width 28 mm. Mechanical status indicator, LED indicator light, test lever and forced operation for diagnostics and maintenance.
Specifications
Housing and mounting
Electrical
Features and applications
Variants and order codes
Order code | Coil voltage | Stock status
CRU-4CL24 | 24 VAC | in stock
CRU-4CL48 | 48 VAC | in stock
CRU-4CL230 | 230 VAC | in stock
CRU-4CL380 | 380 VAC | in stock
CRU-4CLD12 | 12 VDC | in stock
CRU-4CLD24 | 24 VDC | in stock
CRU-4CLD48 | 48 VDC | in stock
Related products
Characteristics / technical specifications
Plug-in industrial relay CRU-4C 10 A – 4x NO/NC – width 28 mm. Mechanical status indicator, LED indicator light, test lever and forced operation for diagnostics and maintenance.
Specifications
- Contacts :
- Configuration: 4 changeover contacts – 4x NO/NC
- Rated current: 10 A
- Maximum switching voltage: 230 VAC / 30 VDC
Housing and mounting
- Mounting: DIN-rail with screw terminal base CRUB-4CB14
- Relay width: 28 mm
- Accessories: retaining arm included
- Compatible base: CRUB-4CB14
- Status indicator: mechanical
- Indicator light: LED
- Functions: test lever and forced operation
Electrical
- Coil voltages available: 24 VAC / 48 VAC / 230 VAC — 12 VDC / 24 VDC / 48 VDC
- Electrical life: 100,000 cycles
- Mechanical life: AC: 30,000,000 cycles; DC: 50,000,000 cycles
- Protection: integral diode
Features and applications
- Function: reliable switching of multiple circuits simultaneously, including high-current loads.
- Immediate status visualization via mechanical indicator and LED.
- Test lever and forced operation to simplify diagnostics and maintenance.
- Applications: industrial and commercial installations requiring multiple switching (automation systems, electrical panels, control circuits, technical infrastructures).
Variants and order codes
Order code | Coil voltage | Stock status
CRU-4CL24 | 24 VAC | in stock
CRU-4CL48 | 48 VAC | in stock
CRU-4CL230 | 230 VAC | in stock
CRU-4CL380 | 380 VAC | in stock
CRU-4CLD12 | 12 VDC | in stock
CRU-4CLD24 | 24 VDC | in stock
CRU-4CLD48 | 48 VDC | in stock
Related products
- Mounting base / compatible socket: CRUB-4C / CRUB-2C
Characteristics / technical specifications
- Model reference: CRU-4C
- Contact type: 4x NO/NC (changeover)
- Switching current: 10 A
- Maximum switching voltage: 230 VAC / 30 VDC
- Width: 28 mm
- Mounting: DIN-rail (screw terminal base)
- Available coil voltages: 12 VDC, 24 VDC, 48 VDC, 24 VAC, 48 VAC, 230 VAC, 380 VAC
- Electrical life: 100,000 cycles
- Mechanical life: AC 30,000,000 cycles; DC 50,000,000 cycles
- Coil protection: integral diode
- Status indicator: mechanical; Indicator: LED
- Accessories supplied: retaining arm
- Additional functions: test lever, forced operation
