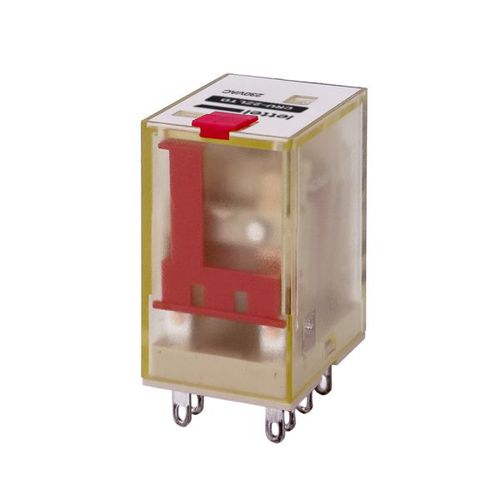

24VAC electromechanical relay CRU-2Z series

230VAC48VDC12VDC

Presentation
8 A plug-in industrial relay – 2x changeover contacts (2x NO/NC) – 21 mm

Features

• Contacts:
  • Configuration: 2 changeover contacts – 2x NO/NC
  • Rated current: 8 A
  • Maximum switching voltage: 230 VAC / 30 VDC
• Housing and mounting:
  • Plug-in relay on clip-on DIN-rail base
  • Retaining arm included
  • Compatible bases: cage clamp terminals CRUB-2ZC08; screw terminal bases CRUB-2ZB08
  • Compatible connection comb: CRUJ-2T (8 positions, available in 3 colours) for screw terminal base only
  • Status indicator: mechanical
  • Indicator lamp: LED
  • Functions: test lever and forced operation
• Electrical:
  • Coil voltages available: 24 VAC / 48 VAC / 230 VAC and 12 VDC / 24 VDC / 48 VDC
  • Consumption: < 1.2 W
  • Electrical life: 100,000 cycles
  • Mechanical life: AC: 30,000,000 cycles; DC: 50,000,000 cycles

Functions

• Provides reliable switching and control of electrical circuits
• Interfaces control circuits and power circuits
• Immediate visual status with integrated indicators (LED and mechanical indicator)

Applications

• Industrial and commercial environments
• Automation systems, control cabinets, monitoring and control equipment
• Applications requiring frequent and reliable switching cycles

Installation

• Mounting on DIN rail via clip-on base
• Wiring via cage clamp or screw terminals
• Use of 8-position connection combs to simplify wiring (for screw terminal base)
• Retaining arm supplied for secure fixation

Variants and ordering codes
Order code - Coil voltage - Stock status
CRU-2ZLT24 - 24 VAC - in stock
CRU-2ZLT48 - 48 VAC - in stock
CRU-2ZLT230 - 230 VAC - in stock
CRU-2ZLTD12 - 12 VDC - in stock
CRU-2ZLTD24 - 24 VDC - in stock
CRU-2ZLTD48 - 48 VDC - in stock

Related products

• Mounting bases and connection combs (accessories for mounting and distribution)
• Other industrial relays and variants (1x changeover, 12 A), compatible heads and bases

Technical specifications

• Commercial reference: CRU-2Z
• Type: plug-in industrial relay
• Width: 21 mm
• Contacts: 2 changeover contacts (2x NO/NC)
• Rated current: 8 A
• Maximum switching voltage: 230 VAC / 30 VDC
• Coil voltages available: 12 VDC, 24 VDC, 48 VDC, 24 VAC, 48 VAC, 230 VAC
• Coil consumption: < 1.2 W
• Electrical life: 100,000 cycles
• Mechanical life: AC 30,000,000 cycles, DC 50,000,000 cycles
• Mounting: clip-on DIN-rail base, retaining arm included
• Wiring: cage clamp or screw terminals (CRUJ-2T combs compatible for screw terminals)
• Status indicator: mechanical
• Indicator lamp: LED
• Additional functions: test lever, forced operation
