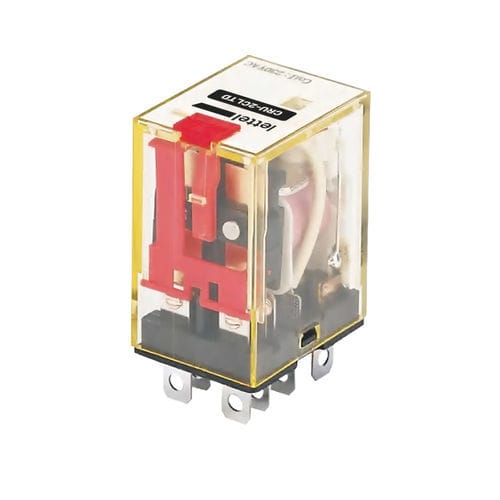

48VDC electromechanical relay CRU-2C series24VAC230VAC12VDC
Add to favorites
Compare this product
Characteristics
- Control voltage
- 48VDC, 24VAC, 230VAC, 12VDC, 24VDC, 48VAC
- Contact configuration
- 2 NO/NC
- Mounting
- DIN rail
- Terminal strip
- plug-in, screw
- Other characteristics
- with LED indicator
- Switching current
Max.: 10 A
Min.: 10 A
- Output voltage
Max.: 230 V
Min.: 30 V
Description
Summary
Plug-in industrial relay 10 A with 2 changeover contacts, LED indicator, test lever and DIN-rail mounting. Suited for automation applications and control cabinets.
Main features
Housing and mounting
Electrical
Functions
Applications
Related products
Variants (ordering code | coil voltage | availability)
Ordering code | Coil voltage | Availability
CRU-2CLT24 | 24 VAC | in stock
CRU-2CLT48 | 48 VAC | in stock
CRU-2CLT230 | 230 VAC | in stock
CRU-2CLTD12 | 12 VDC | in stock
CRU-2CLTD24 | 24 VDC | in stock
CRU-2CLTD48 | 48 VDC | in stock
Downloads
Product sheet and technical documentation available (industrial relay brochure in PDF).
Specifications / technical data
Plug-in industrial relay 10 A with 2 changeover contacts, LED indicator, test lever and DIN-rail mounting. Suited for automation applications and control cabinets.
Main features
- Configuration: 2 changeover contacts
- Rated current: 10 A
- Max switching voltage: 230 VAC / 30 VDC
- Indicator: LED
- Status indicator: mechanical
- Functions: test lever, forced operation
Housing and mounting
- Mounting: DIN-rail mounting with screw-terminal base
- Supplied accessories: retaining clip included
- Compatible bases: screw terminals
Electrical
- Available coil voltages: 24 VAC / 48 VAC / 230 VAC; 12 VDC / 24 VDC / 48 VDC
- Consumption: < 1.2 W
- Electrical life: 100,000 cycles
- Mechanical life: AC: 30,000,000 cycles; DC: 50,000,000 cycles
- Coil protection: built-in diode
Functions
- Robust switching for high-current circuits (10 A)
- Status visualization by LED and mechanical indicator
- Integrated test lever for diagnostics and maintenance
- Protective diode for the coil
Applications
- Industrial and commercial automation
- Control cabinets and control systems
- Power circuits subject to frequent cycles
Related products
- Compatible DIN-rail base/socket (compatible base reference indicated on the product sheet)
Variants (ordering code | coil voltage | availability)
Ordering code | Coil voltage | Availability
CRU-2CLT24 | 24 VAC | in stock
CRU-2CLT48 | 48 VAC | in stock
CRU-2CLT230 | 230 VAC | in stock
CRU-2CLTD12 | 12 VDC | in stock
CRU-2CLTD24 | 24 VDC | in stock
CRU-2CLTD48 | 48 VDC | in stock
Downloads
Product sheet and technical documentation available (industrial relay brochure in PDF).
Specifications / technical data
- Type: plug-in industrial relay, 2x changeover contacts
- Contact rated current: 10 A
- Max switching voltage: 230 VAC / 30 VDC
- Available coil voltages: 12 VDC, 24 VDC, 48 VDC, 24 VAC, 48 VAC, 230 VAC
- Coil consumption: < 1.2 W
- Electrical life: 100,000 cycles
- Mechanical life: AC 30,000,000 cycles / DC 50,000,000 cycles
- Protection: built-in diode on coil
- Mounting: DIN-rail, screw-terminal base
- Indication: LED + mechanical indicator
- Additional functions: test lever, forced operation
