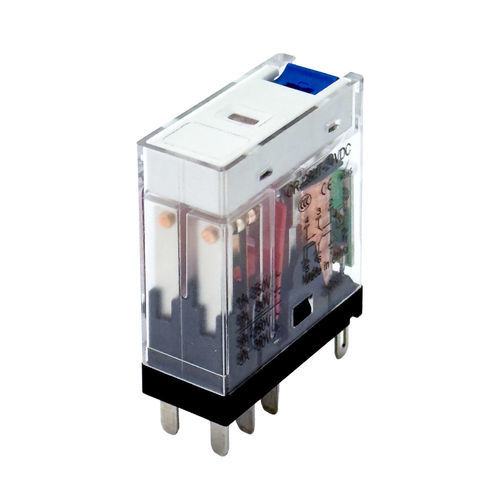

24VDC electromechanical relay CRJ-2S series

48VAC12VDC24VAC

Overview
Plug-in industrial relay CRJ-2SLT, 2x changeover (NO/NC), 8 A, with mechanical indicator, LED status lamp, test lever, manual override and integrated protection diode. Designed for control and switching of electrical circuits in industrial automation and control cabinets.

Contacts

• Configuration: 2 changeover contacts — 2x NO/NC
• Rated current: 8 A
• Maximum switching voltage: 230 VAC / 30 VDC

Electrical

• Coil supply voltages available: 24 VAC, 48 VAC, 230 VAC, 12 VDC, 24 VDC, 48 VDC
• Coil consumption: < 0.9 W
• Electrical life: 100,000 cycles
• Mechanical life: AC – 30,000,000 cycles; DC – 50,000,000 cycles
• Coil protection: integrated diode

Enclosure and mounting

• Mounting: DIN rail via plug-in base (compatible base width 16 mm)
• Connection: screw terminals
• Status indicator: mechanical
• Indicator lamp: LED
• Functions: test lever, manual override
• Compatible with distribution combs via the base for potential distribution
• Width: 12.8 mm

Features

• Quick status visualization (mechanical indicator + LED)
• Integrated test lever and manual override to facilitate maintenance and diagnostics
• Integrated protection diode to secure the coil against voltage spikes

Applications

• Industrial automation
• Control cabinets and control systems
• Load switching, command/power interfaces, signalling and safety

Installation
Plugs onto a compatible plug-in base and clips onto a DIN rail. Connections are made via screw terminals. A retention clip ensures mechanical hold in vibrating environments. Distribution combs can be used for potential distribution and labelling inside electrical panels.

Variants and order codes
CRJ-2SLT24 — 24 VAC — in stock
CRJ-2SLT48 — 48 VAC — in stock
CRJ-2SLT230 — 230 VAC — in stock
CRJ-2SLTD12 — 12 VDC — in stock
CRJ-2SLTD24 — 24 VDC — in stock
CRJ-2SLTD48 — 48 VDC — in stock

Characteristics / technical specifications

• Type: plug-in industrial relay, 2x NO/NC (double changeover)
• Switching current: 8 A
• Maximum switching voltage: 230 VAC / 30 VDC
• Available coil voltages: 12 VDC, 24 VDC, 48 VDC, 24 VAC, 48 VAC, 230 VAC
• Coil consumption: < 0.9 W
• Electrical life: 100,000 cycles
• Mechanical life: AC 30,000,000 cycles / DC 50,000,000 cycles
• Coil protection: integrated diode
• Mounting: plug-in base on DIN rail (base width 16 mm)
• Connection: screw terminals
• Status indicator: mechanical and LED
• Additional functions: test lever, manual override, compatibility with distribution combs
• Width: 12.8 mm
