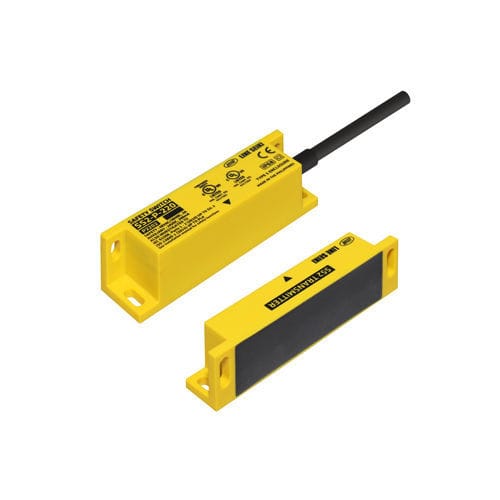

Safety switch SS2-P-3 series

multipolewaterproofIP68

Non-contact Safety Switch - Plastic - Stand-alone - Safety Relay Combinable per Condition Features - PLd per ISO 13849-1 in stand-alone applications - Cross monitoring between two channels Models - SS2-P-310: Relay, N.O. Contact x 1, N.C. Contact x 1, N.C.(SSR Output) x 1, Polyamide 66 (PA66) - SS2-P-320: Relay, N.O. Contact x 1, N.C. Contact x 1, N.C.(PNP Open Collector Output) x 1, Polyamide 66 (PA66) - SS2-P-330: Relay, N.O. Contact x 1, N.C. Contact x 1, N.C.(NPN Open Collector Output) x 1, Polyamide 66 (PA66) Specifications - Power Supply Voltage: DC24V (-15%/+10%) - Operating Distances: Rated Operating Distance: 12mm, Assured Switch ON Distance: 10mm, Assured Switch OFF Distance: 15mm, Hysteresis: 2mm, Repeat Accuracy: 100 years - Complied Standards: ISO 13849-1, ISO 14119, IEC 60204-1, IEC 61508-1, IEC 61508-2, IEC 62061, IEC 60947-5-3, UL 60947-1, UL 60947-5-2, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-5-2, CE, RoHS Models - SS2-P-310 - SS2-P-320 - SS2-P-330 Safety Output - N.O. Contact x 1 N.C. Contact x 1 (AC48V 2A (AC General Use) / DC30V 2A (DC Resistive) / DC5V 10mA Min.) Auxiliary Output (x1) - N.C. x 1 (SSR Output) - N.C. x 1 (PNP Open Collector Output) - N.C. x 1 (NPN Open Collector Output) - DC24V 200mA Max. Contact Configuration - Operating Current: 60mA, 215mA, 60mA - Safety Relay Unit: Can be used with safety relay unit receiving 1 N.O. + 1 N.C. input / Cannot be used with SM1-301 of Line Seiki Dimensions - Transmitter Unit: 92 x 25 x 17 mm - Receiver Unit: 92 x 25 x 24.5 mm Weight - Transmitter Unit: 80g - Receiver Unit (including cable): 230g Protection Class - IP68 PL - PLd (Cat.3), SIL2: Stand-alone (1 safety switch) - Performance level depends on evaluation of entire system: Combined with a relay unit (1 N.O. + 1 N.C.) Video: Non-contact Safety Door Switches with High Durability and Superior Safety Performance Downloads: Catalogs available in EN, North America, KO, ZH-CN, ZH-TW, DE, FR, ES. Key Technical Specifications: - Power Supply Voltage: DC24V (-15%/+10%) - Operating Distance: 12mm (Rated), ON: 10mm, OFF: 15mm, Hysteresis: 2mm, Repeat Accuracy: 100 years - Complied Standards: ISO 13849-1, ISO 14119, IEC 60204-1, IEC 61508-1/2, IEC 62061, IEC 60947-5-3, UL, CSA, CE, RoHS - Dimensions: Transmitter 92x25x17mm, Receiver 92x25x24.5mm - Weight: Transmitter 80g, Receiver 230g (with cable) Product page at official website of Line Seiki: https://www.lineseiki.com/product/1734/
