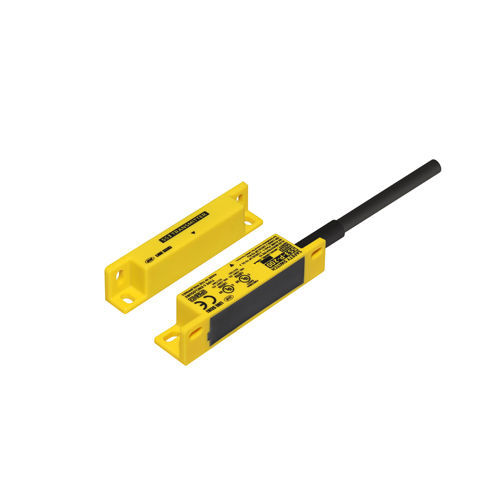

Safety switch SS3-P-200
multipolewaterproofIP68

Safety switch - SS3-P-200 - Line Seiki - multipole / waterproof / IP68
Safety switch - SS3-P-200 - Line Seiki - multipole / waterproof / IP68
Safety switch - SS3-P-200 - Line Seiki - multipole / waterproof / IP68 - image - 2
Safety switch - SS3-P-200 - Line Seiki - multipole / waterproof / IP68 - image - 3
Safety switch - SS3-P-200 - Line Seiki - multipole / waterproof / IP68 - image - 4
Safety switch - SS3-P-200 - Line Seiki - multipole / waterproof / IP68 - image - 5
Safety switch - SS3-P-200 - Line Seiki - multipole / waterproof / IP68 - image - 6
Add to favorites
Compare this product
Go to the Line Seiki website for more information

Characteristics

Number of poles
multipole
Protection level
waterproof, IEC, SIL 2, IP68
Norms
C-US UL, C22.2
Other characteristics
polyamide, industrial, on/off, door, sealed, coded safety, coded, compact, magnetic, contactless, stand-alone, safety, interlock
Primary current

60 mA

Voltage

24 V

Diameter / length

70 mm
(2.8 in)

Operating temperature

Min.: -25 °C
(-13 °F)

Max.: 60 °C
(140 °F)

Width

16 mm
(0.6 in)

Height

12 mm, 16 mm
(0.5 in, 0.6 in)

Description

Non-contact Safety Switch - Plastic - Stand-alone - Small type Features: - PLc per ISO 13849-1 in stand-alone applications - Cross monitoring between two channels - Small type, slim designed, easy to install Models: - Models: SS3-P-200 - Safety Output: Relay, N.O. Contact x 2 - Auxiliary Output: None - Enclosure Material: Polyamide 66 (PA66) Specifications: - Power Supply Voltage: DC24V (-15%/+10%) - Operating Current: 60mA - Operating Distances: Rated Operating Distance: 7mm, Assured Switch ON Distance: 6mm, Assured Switch OFF Distance: 10mm, Hysteresis: 1mm, Repeat Accuracy: 100 years - Complied Standards: ISO 13849-1, ISO 14119, IEC 60204-1, IEC 61508-1, IEC 61508-2, IEC 62061, IEC 60947-5-3, UL 60947-1, UL 60947-5-2, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-5-2, CE, RoHS Product page at official website of Line Seiki: https://www.lineseiki.com/product/1741/
