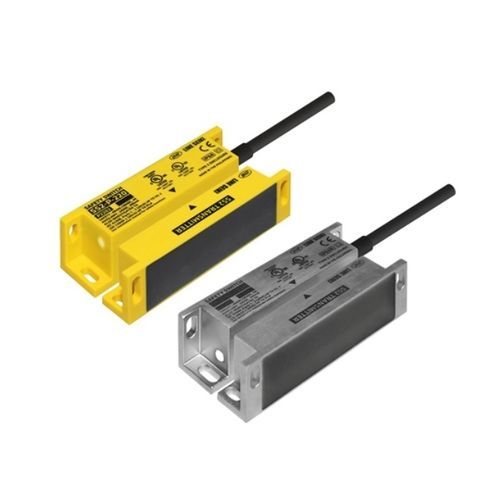

Safety switch SS series

multipoleIP69KIP68

Safety door switches detect the position (open or close) of safety guards or doors as a means of safeguarding operators from dangerous machines such as semiconductor manufacturing machines, packaging machines and food processing machines. Non-contact Safety Switch SS series - Plastic and Stainless - Stand-alone available Features - PLd per ISO 13849-1 in stand-alone applications (SS2 series), cross monitoring between two channels - PLc per ISO 13849-1 in stand-alone applications (SS3 series), two channels - Up to PLe per ISO 13849-1 in combination with a safety relay unit (SS4 series) Models - SS2-P-110/120/130: Safety Output: Relay, N.O. Contact x 1, Auxiliary Output: N.C. x 1 - SS2-OX-110/120/130: Safety Output: Relay, N.O. Contact x 1, Auxiliary Output: N.C. x 1 - SS2-P-210/220/230: Safety Output: Relay, N.O. Contact x 2, Auxiliary Output: N.C. x 1 - SS2-OX-210/220/230: Safety Output: Relay, N.O. Contact x 2, Auxiliary Output: N.C. x 1 - SS2-P-310/320/330: Safety Output: Relay, N.O. Contact x 1 + N.C. Contact x 1, Auxiliary Output: N.C. x 1 - SS2-OX-310/320/330: Safety Output: Relay, N.O. Contact x 1 + N.C. Contact x 1, Auxiliary Output: N.C. x 1 - SS3-P-200: Safety Output: Relay, N.O. Contact x 2 - SS3-OX-200: Safety Output: Relay, N.O. Contact x 2 - SS4-P-420/430: SSR N.O. Output x 2, Auxiliary Output: N.C. x 1 - SS4-OX-420/430: SSR N.O. Output x 2, Auxiliary Output: N.C. x 1 Specifications - Power Supply Voltage: DC24V (-15%/+10%) - Operating Distances: SS2 series Rated Operating Distance: 12mm, Assured Switch ON Distance: 10mm, Assured Switch OFF Distance: 15mm, Hysteresis: 2mm, Repeat Accuracy: <5% SS3, SS4 series Rated Operating Distance: 7mm, Assured Switch ON Distance: 6mm, Assured Switch OFF Distance: 10mm, Hysteresis: 1mm, Repeat Accuracy: <5% - Complied Standards: ISO 13849-1, ISO 14119, IEC 60204-1, IEC 61508-1, IEC 61508-2, IEC 62061, IEC 60947-5-3, UL 60947-1, UL 60947-5-2, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-5-2, CE, RoHS Detailed Model Specifications - Protection Class: IP68 (Plastic models: SS_-P-__0) IP69K (Stainless steel models: SS_-OX-__0) - Safety Output: SS2 series N.O. Contact AC48V 2A (AC General Use) / DC30V 2A (DC Resistive) | N.C. Contact DC5V 10mA Min. SS3 series N.O. Contact AC48V 250mA (AC Resistive, AC General Use) / DC30V 250mA (DC General Use), DC5V 10mA Min. - Operating Current: 60mA or 215mA (SS2/SS3 per model) 30mA or 268mA (SS4 per model) - Dimensions: SS2 series Plastic type Transmitter 92 x 25 x 17 mm, Receiver 92 x 25 x 24.5 mm Stainless steel type Transmitter 92 x 29 x 18 mm, Receiver 92 x 29 x 24 mm SS3/SS4 series Plastic type Transmitter 70 x 12 x 16 mm, Receiver 70 x 16 x 16 mm Stainless steel type Transmitter 70 x 12 x 16 mm, Receiver 70 x 16 x 16 mm - Weight: SS2 series (Plastic): Transmitter 80g, Receiver (with cable) 230g SS2 series (Stainless steel): Transmitter 190g, Receiver (with cable) 370g SS3/SS4 series (Plastic): Transmitter 30g, Receiver (with cable) 180g SS3/SS4 series (Stainless steel): Transmitter 70g, Receiver (with cable) 210g Official website of Line Seiki: https://www.lineseiki.com/product/category/safety/
