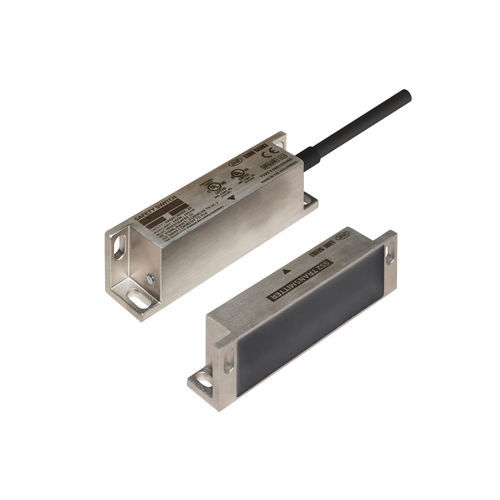

Safety switch SS2-OX-1 series

multipolerobustIP69K

Non-contact Safety Switch SS2-OX-3 series - Stainless - Stand-alone Features - PLd per ISO 13849-1 in stand-alone applications - Cross monitoring between two channels - Multiple units can be connected to one safety relay unit - Robust stainless steel housing Models - SS2-OX-110: Safety Output: Relay, N.O. Contact x 1, Auxiliary Output: N.C.(SSR Output) x 1 - SS2-OX-120: Safety Output: Relay, N.O. Contact x 1, Auxiliary Output: N.C.(PNP Open Collector Output) x 1 - SS2-OX-130: Safety Output: Relay, N.O. Contact x 1, Auxiliary Output: N.C.(NPN Open Collector Output) x 1 Specifications - Power Supply Voltage: DC24V (-15%/+10%) - Operating Distances: Rated Operating Distance: 12mm, Assured Switch ON Distance: 10mm, Assured Switch OFF Distance: 15mm, Hysteresis: 2mm, Repeat Accuracy: <5% - Complied Standards: ISO 13849-1, ISO 14119, IEC 60204-1, IEC 61508-1, IEC 61508-2, IEC 62061, IEC 60947-5-3, UL 60947-1, UL 60947-5-2, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-5-2, CE, RoHS Detailed Model Specifications - Models: SS2-OX-110, SS2-OX-120, SS2-OX-130 - Safety Output: N.O. Contact x 1 (AC48V 2A (AC General Use) / DC30V 2A (DC Resistive) / DC5V 10mA Min. - Operating Current: 60mA (SS2-OX-110/130), 215mA (SS2-OX-120) - Protection Class: IP69K - Dimensions: Transmitter 92 x 29 x 18 mm, Receiver 92 x 29 x 24 mm - Weight: Transmitter 190g, Receiver (with cable) 370g - PL: PLd (Safety Cat.3), SIL 2 (stand-alone only, Up to 25 safety switches can be connected in series) Product page at official website of Line Seiki: https://www.lineseiki.com/product/1724/
