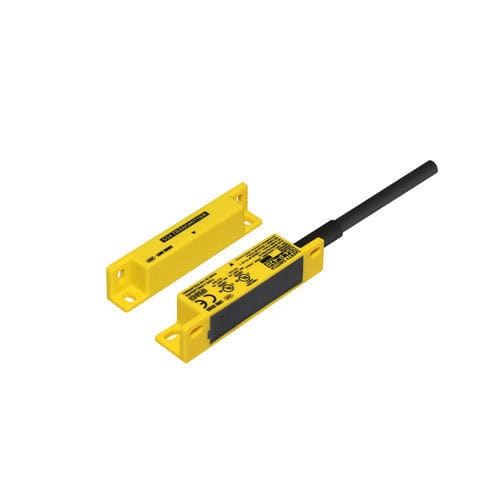

Safety switch SS4-P series

multipoleIP68SIL 3

Non-contact Safety Switch - Plastic - Safety Relay Mandatory - Small type Features - Small type, slim designed, easy to install - Up to PLe per ISO 13849-1 in combination with a safety relay unit - Multiple units can be connected to one safety relay unit Models - SS4-P-420: SSR, N.O. Output x 2, N.C.(PNP Open Collector Output) x 1, Polyamide 66 (PA66) - SS4-P-430: SSR, N.O. Output x 2, N.C.(NPN Open Collector Output) x 1, Polyamide 66 (PA66) Specifications - Power Supply Voltage: DC24V (-15%/+10%) - Current Consumption: 268mA (SS4-P-420), 30mA (SS4-P-430) - Operating Distances: Rated Operating Distance: 7mm, Assured Switch ON Distance: 6mm, Assured Switch OFF Distance: 10mm, Hysteresis: 1mm, Repeat Accuracy: <5% - Output: N.O. Output x2 (To be connected to SM1-301) - Auxiliary Output: N.C. x 1 (PNP/NPN Open Collector Output) - Dimensions: Transmitter Unit: 70 x 12 x 16 mm, Receiver Unit: 70 x 16 x 16 mm - Weight: Transmitter Unit: 30g, Receiver Unit (including cable): 180g - Operating Temperature: -25 – +60°C - Protection Class: IP68 - Type Coding Level (ISO 14119): 4 / Low - PL: PLe (Safety Cat.4), SIL3: Combined with Safety Relay unit “SM1-301” - B10d: 2,000,000 times - Complied Standards: ISO 13849-1, ISO 14119, IEC 60204-1, IEC 61508-1, IEC 61508-2, IEC 62061, IEC 60947-5-3, UL 60947-1, UL 60947-5-2, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-5-2, CE, RoHS Product page at official website of Line Seiki: https://www.lineseiki.com/product/1747/
