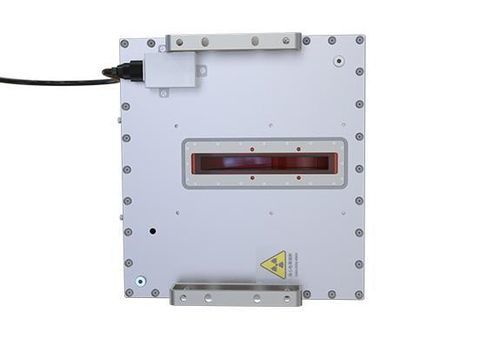

Portable X-ray source

Output specifications
140 kV, 84 W

Brief introduction
Compact monoblock X-ray high-voltage generator integrating filament power supply, high-voltage generator and X‑ray tube in a single tank. Designed for public security and industrial imaging applications, it offers selectable digital or analog control and a simple DB9 interface for easy installation and operation. Digital control and a unique internal architecture ensure stable performance and extended service life.

Key features

• Flexible application: digital and analog source options for varied use cases.
• Minimal operation: single DB9 connector and power socket for simplified wiring.
• High stability and reliability for long-term continuous or intermittent operation.
• Integrated monoblock design: compact, lightweight and easy to mount.

Additional highlights

• DSP control
• Compact cubic footprint
• Enhanced safety features
• Extended service life

Specifications
Input voltage range: 180–240 Vac, 50/60 Hz
Output voltage range: 40–80 kV (adjustment resolution 0.1 kV)
Output voltage accuracy: ±0.1 kV resolution; tube voltage error not to exceed 1.5% of set value
Output voltage ripple: low-frequency ripple (<1 kHz) <0.5% (Pk–Pk)
Input voltage regulation: <0.1%
Load regulation: ≤0.1% (rated output current, when output voltage changes from 40 kV to 80 kV)
Emission current: 0.3–0.6 mA (rated power 48 W)
Protection circuits: over-current, over-voltage, over-humidity, over-power, communication-fault protection
Focal spot size: 0.8 mm (IEC‑60336)
Safety certifications: UL, CE
Operating modes: continuous or intermittent
Preheat: configurable automatic or manual preheat
Operating temperature: 0–40 °C
Storage temperature: -20–60 °C
Humidity: ≤95% non-condensing
Mechanical dimensions (W×D×H): 346×169×148 mm
Weight: <16 kg
Radiation filtration (equivalent): 1.5 mm (glass) + 5 mm (oil) + 1.5 mm (plastic)
Radiation window angle: fan beam 12×65
Cooling: forced air cooling

Technical specifications

• Product name: 140kV 84W
• Output power: 84 W
• Maximum voltage: 140 kV
• Voltage adjustment range: 40–80 kV (0.1 kV resolution)
• Emission current: 0.3–0.6 mA (at rated 48 W)
• Focal spot: 0.8 mm (IEC‑60336)
• Input: 180–240 Vac, 50/60 Hz
• Cooling: forced air cooling
• Dimensions: 346×169×148 mm
• Weight: <16 kg
• Protections: OCP, OVP, over-humidity, over-power, communication-fault
• Certifications: UL, CE
