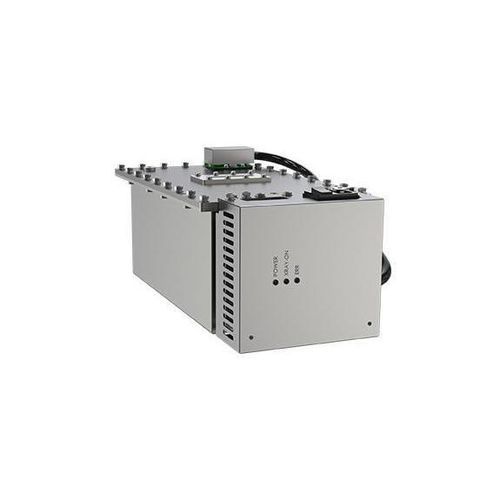

X-ray source

Output Specs
80 kV, 48 W, emission current 0.3-0.6 mA, focal spot 0.8 mm (IEC-60336)

Brief Introduction
Compact monoblock X-ray unit integrating filament power supply, high-voltage generator and X-ray tube in a shielded tank. Available in multiple kV models to suit different diagnostic and security applications. Digital control and optimized internal design deliver stable output and extended operating life in continuous or intermittent modes.

Key Features

• Available models: 80 kV, 140 kV, 160 kV
• Continuously adjustable voltage and current
• Compact, lightweight monoblock for easy installation
• RS232 communication for system integration
• Configurable automatic or manual preheat

Advantages / Highlights

• DSP-based digital control for precise regulation
• Small cubic footprint for space-constrained setups
• Comprehensive protective circuits (over-current/voltage/humidity/power, communication fault)
• Designed for long operational lifetime

Specifications (table)
Input voltage range - 180-240 Vac, 50/60 Hz
Output voltage range - 40-80 kV
Output voltage accuracy - within 1.5% on the X-ray tube
Output voltage ripple - LF ripple (<1 kHz) < 0.5% of rated output (Pk-Pk)
Input voltage regulation - <0.1%
Load regulation - ≤0.1% (when output voltage varies from 40 kV to 80 kV)
Voltage regulation resolution - 0.1 kV
Emission current - 0.3-0.6 mA (rated power 48 W)
Protection circuits - over-current, over-voltage, over-humidity, over-power, communication-fault protection
Focal spot size - 0.8 mm (IEC-60336)
Safety approvals - compliant with UL and CE standards
Operation mode - continuous or intermittent
Preheat - configurable automatic or manual preheating
Operating temperature - 0–40 °C
Storage temperature - -20–60 °C
Humidity - ≤95% non-condensing
Mechanical dimensions (W×D×H) - 346 × 169 × 148 mm
Weight - <16 kg
Radiation filtration - 1.5 mm (glass) + 5 mm (oil) (equivalent) + 1.5 mm (plastic)
Radiation window angle - fan beam 12×65
Cooling method - forced air cooling

Dimension
Mechanical dimensions specified above; dimension drawing available on request

Technical specifications

• Input voltage: 180-240 Vac, 50/60 Hz
• Output voltage: 40-80 kV, accuracy and ripple as specified
• Emission current: 0.3–0.6 mA (rated 48 W)
• Voltage regulation resolution: 0.1 kV
• Load regulation: ≤0.1%
• Protection: over-current/voltage/humidity/power and communication-fault
• Focal spot: 0.8 mm (IEC-60336)
• Certifications: UL, CE
• Operating/storage temperature and humidity as above
• Cooling: forced air
