Portable X-ray source

Overview

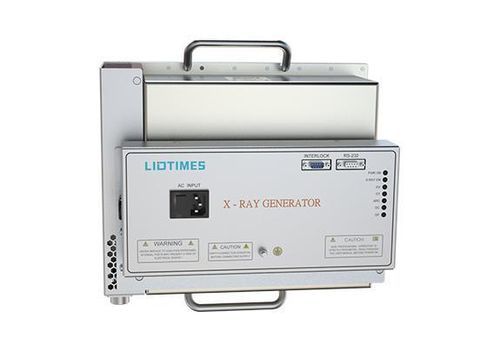

Compact DSP-controlled 80 kV / 300 W high-voltage X-ray generator designed for continuous or intermittent operation in industrial inspection and imaging applications. External large-area radiator and cooling fan support long-term operation, while the internal structural design minimizes oil leakage. The unit supports flexible installation with a pre-installed detachable handle and a fixed control-panel option for integrated or split installation.

Key features

• Selectable source type: digital or analog output
• Simplified wiring: single DB9 communication port and one power socket
• High-stability electrical design for long-term reliable operation
• Integrated architecture: control box and head combined for space-saving installation
• DSP-based digital control for precise parameter adjustment

Highlights

• DSP control
• Small cubic size (346 × 169 × 148 mm)
• Enhanced safety with multiple protection circuits
• Designed for long service life of the X-ray tube

Technical specifications

• Output: 80 kV, 300 W
• Input voltage range: 180–240 Vac, 50/60 Hz
• Selectable output range: 40–80 kV
• Tube voltage error: ≤ 1.5% of set value
• Voltage ripple: low-frequency (<1 kHz) < 0.5% (Pk–Pk) of rated output
• Input voltage regulation: < 0.1%
• Load regulation: ≤ 0.1% (rated output current when voltage varies from 40 kV to 80 kV)
• Voltage adjustment accuracy: 0.1 kV
• Emission current: 0.3–0.6 mA (example rated power: 48 W)
• Protection: over-current, over-voltage, over-humidity, over-power, communication fault protection
• Focal spot size: 0.8 mm (IEC‑60336)
• Safety certifications: UL, CE
• Operation modes: continuous or intermittent
• Preheat: configurable automatic or manual preheat
• Operating temperature: 0–40 °C
• Storage temperature: -20–60 °C
• Humidity: ≤ 95% (non‑condensing)
• Dimensions: 346 × 169 × 148 mm
• Weight: < 16 kg
