X-ray source mirco FS

Overview

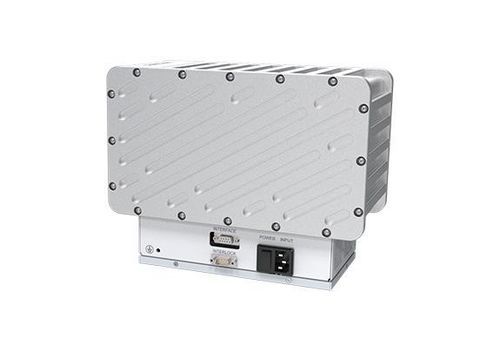

The micro FS micro-focus X-ray generator delivers high-resolution X-ray imaging for low-voltage inspection tasks. The unit integrates filament power supply, high-voltage generator, X-ray tube, control and protection circuits in a compact cabinet with anti-oil-leakage and optimized heat dissipation. Micro-focus emission and DSP control improve detection accuracy and operational stability. Standard RS232 serial communication, simple DB9 connector and power inlet allow fast integration into industrial inspection systems.

Key features

• Flexible output: selectable digital or analog source options for different inspection workflows
• Simple operation: single DB9 connector and power inlet for straightforward wiring and installation
• Integrated compact design: control box and tube head combined for reduced footprint
• Robust protection: over-current, over-voltage, over-humidity, over-power and communication-fault protections
• Configurable preheat: automatic or manual preheating modes

Highlights

• DSP control for stable output
• Small cubic size for space-constrained setups
• Enhanced safety with multiple protection circuits
• Long tube lifetime through optimized control and communication

Technical specifications

• Model / Series: micro FS (Industrial Usage micro FS)
• Input voltage range: 180–240 Vac, 50/60 Hz
• Output voltage range / accuracy: 40–80 kV; tube voltage error ≤ 1.5% of set value
• Voltage ripple: low-frequency <1 kHz ripple <0.5% (Pk–Pk)
• Input voltage regulation: <0.1%
• Load regulation: ≤0.1% (rated output current when voltage changes from 40 kV to 80 kV)
• Voltage adjustment resolution: 0.1 kV
• Emission current: 0.3–0.6 mA (rated power 48 W)
• Focus size: 0.8 mm (IEC-60336)
• Protection: over-current, over-voltage, over-humidity, over-power, communication-fault
• Safety certification: meets UL and CE standards
• Operating modes: continuous or intermittent
• Preheat: configurable automatic or manual
• Operating temperature: 0–40 °C
• Storage temperature: -20–60 °C
• Radiation filtration: 1.5 mm (glass) + 5 mm (oil) (equivalent) + 1.5 mm (plastic)
• Radiation window angle: fan beam 12×65
• Cooling method: forced air cooling
• Mechanical dimensions (W×D×H): 346 × 169 × 148 mm
• Approx. weight: <16 kg

Applications

• Non-destructive testing (NDT) of castings, welds and composites
• High-resolution inspection of small components and assemblies
• Materials analysis and R&D laboratories
• Security screening and electronic component inspection

Compliance & services
Meets UL and CE safety standards. Standard RS232 interface enables remote control and integration into automated inspection lines. Simple wiring and compact footprint facilitate system integration and maintenance.
