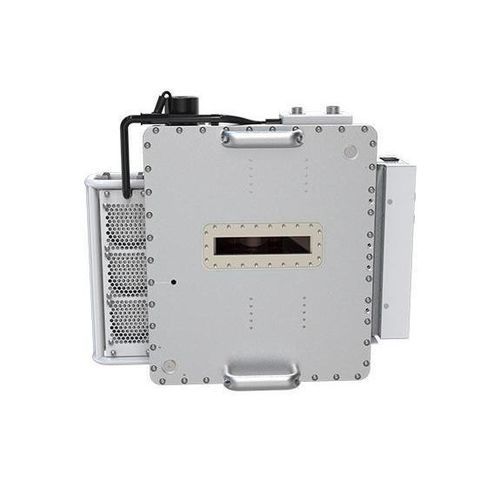

Portable X-ray source

Overview
Integrated high-voltage X‑ray generator with digital RS232 interface (analog source optional). Single DB9 connector and mains inlet simplify installation; control box and X‑ray head are integrated for a compact footprint.

Key features

• Output: 200 kV, 500 W
• DSP control
• Digital RS232 interface (analog control optional)
• Single DB9 communication connector and power inlet
• Integrated control box and tube head for compact installation
• Selectable preheat: automatic or manual
• Continuous or intermittent operation modes
• Protection circuits: over-current, over-voltage, over-humidity, over-power, communication fault
• Forced air cooling

Technical specifications

• Input voltage: 180–240 Vac, 50/60 Hz
• Nominal output voltage: 200 kV; adjustable output range: 40–80 kV
• Output voltage accuracy/range on X‑ray tube: deviation ≤ 1.5% of set value
• Output voltage ripple: <0.5% (Pk–Pk) for <1 kHz low-frequency ripple
• Input voltage regulation: <0.1%
• Load regulation: ≤0.1% (when output voltage changes from 40 kV to 80 kV)
• Voltage regulation resolution: 0.1 kV
• Emission current: 0.3–0.6 mA (rated power 48 W)
• Focal spot size: 0.8 mm (IEC 60336)
• Radiation filtration: 1.5 mm (glass) + 5 mm (oil, equivalent) + 1.5 mm (plastic)
• Radiation window (fan beam): 12° × 65°
• Dimensions (W × D × H): 346 × 169 × 148 mm
• Weight: <16 kg
• Operating temperature: 0–40 °C
• Storage temperature: -20–60 °C
• Humidity: ≤95%, non-condensing
• Certifications: UL, CE

Applications

• Integration into diagnostic radiography and mobile X‑ray units
• Dental, veterinary and small-format medical imaging systems
• Specialized imaging applications requiring a compact integrated high-voltage source

Options & ordering

• Digital RS232 interface standard; analog control source available on request
• Optional radiation filters and window configurations
• Contact supplier for configuration, installation and compliance documentation
