Portable X-ray source

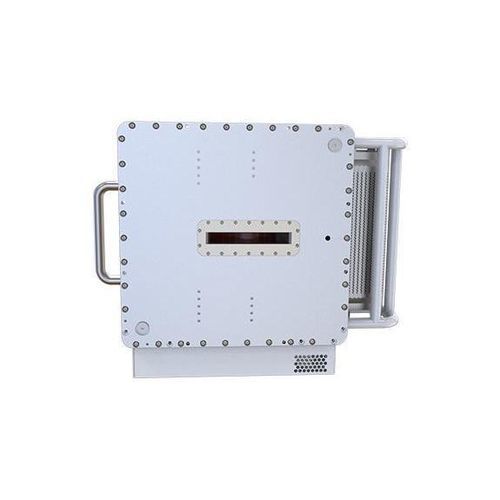

Portable X-ray source - LIOTIMES
Portable X-ray source - LIOTIMES
Portable X-ray source - LIOTIMES - image - 2
Portable X-ray source - LIOTIMES - image - 3
Portable X-ray source - LIOTIMES - image - 4
Portable X-ray source - LIOTIMES - image - 5
Add to favorites
Compare this product

Characteristics

Type
portable
Max KV

160 kV

Max power

500 W

Description

Product overview
  • High-voltage X-ray generator with 160 kV rated voltage and 500 W output power, designed to combine penetration and dose for a wide range of inspection applications.
  • Large beam port producing a 90°×10° fan beam to cover broad inspection areas.
  • Advanced thermal management using an internal oil pump with oil circulation, supplemented by forced air cooling to maintain stable operation.
  • Flexible installation: pre-installed detachable handle; supports top-panel and bottom-base mounting.


Key features
  • DSP control for precise voltage and current regulation
  • Compact footprint for system integration
  • Comprehensive protection: over-current, over-voltage, over-humidity, over-power, communication fault
  • Selectable operation modes: continuous or intermittent; configurable automatic or manual preheat
  • Focal spot 0.8 mm (IEC-60336); safety certifications: UL, CE


Technical specifications
  • Output: 160 kV, 500 W
  • Input voltage range: 180–240 Vac, 50/60 Hz
  • Output voltage accuracy: 0.1 kV; tube voltage error ≤ 1.5% of set value
  • Output voltage ripple: <0.5% (Pk–Pk) at low frequency <1 kHz
  • Input voltage regulation: <0.1%
  • Load regulation: ≤0.1% (rated output current when voltage varies from 40 kV to 80 kV)
  • Emission current: 0.3–0.6 mA (example rated power 48 W)
  • Protection circuits: over-current, over-voltage, over-humidity, over-power, communication fault
  • Focal spot size: 0.8 mm (IEC-60336)
  • Operating mode: continuous or intermittent
  • Preheat: automatic or manual (configurable)
  • Operating temperature: 0–40 °C; Storage temperature: -20–60 °C
  • Cooling method: internal oil circulation + forced air cooling
  • Radiation filtration: equivalent to 1.5 mm (glass) + 5 mm (oil) + 1.5 mm (plastic)
  • Radiation window / beam angles: fan beam 12°×65° (typical); large beam port 90°×10°
  • Standards: IEC focal spot standard, UL and CE certifications
