Portable X-ray source

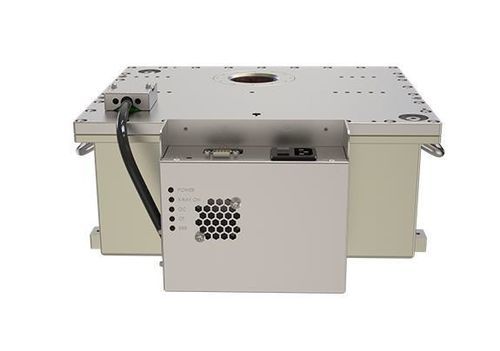

Portable X-ray source - LIOTIMES
Portable X-ray source - LIOTIMES
Portable X-ray source - LIOTIMES - image - 2
Portable X-ray source - LIOTIMES - image - 3
Portable X-ray source - LIOTIMES - image - 4
Portable X-ray source - LIOTIMES - image - 5
Add to favorites
Compare this product

Characteristics

Type
portable
Max KV

160 kV

Max power

200 W

Description

Brief Introduction
  • Digital X-ray source for integration in medical imaging systems; kV and mA are continuously adjustable to match clinical and industrial imaging scenarios.
  • 45° cone beam option covers a wide imaging field; fan beam available as an option.
  • Advanced cleaning and sealing processes and comprehensive testing ensure product stability and repeatable performance.
  • Flexible installation: supports upper panel or lower base mounting, integrated or split installation to suit system architecture.


Highlights
  • DSP control for precise output regulation
  • Compact footprint for easy integration
  • Multiple protection circuits (over-current, over-voltage, over-temperature, over-power, communication fault)
  • Designed for long service life and reliable operation


Technical specifications
  • Input Line Voltage: 100~240Vac, 50/60Hz
  • Output kV Range: 60~160kV
  • Output Voltage Accuracy: voltage error on the X-ray tube ≤ 1.5% of set value
  • Output kV Ripple: low-frequency ripple (<1kHz) < 0.5% of rated output voltage (Pk-Pk)
  • Input Voltage Regulation: <0.1%
  • Load Regulation: ≤0.1% at rated output current (when output voltage changes from 80kV to 200kV)
  • kV Regulation Accuracy: 0.1 kV
  • Output mA: 0.3~2.5 mA (rated power 200 W)
  • Protection Circuit: over-current, over-voltage, over-temperature, over-power, communication fault protection
  • F/S: 0.5 mm (IEC-60336)
  • Certificates: Designed to meet CE and UL
  • Operating Mode: continuous or intermittent
  • Warm Up: configurable automatic or manual warm-up (default manual)
  • Operating Temperature: 0-40℃
  • Storage Temperature Range: -20-60℃
  • Humidity: <95%, non-condensing
  • Dimensions (W×D×H): 343×361×167 mm (with handle); 402×361×167 mm (without handle)
  • Weight: 36 kg
  • Radiation Filter: 1.5 (glass); 6 (oil); 2 (plastic) (same items result)
  • Beam Port: cone beam 45°; fan beam optional
  • Cooling: internal forced air
