X-ray source mirco FS

Product overview

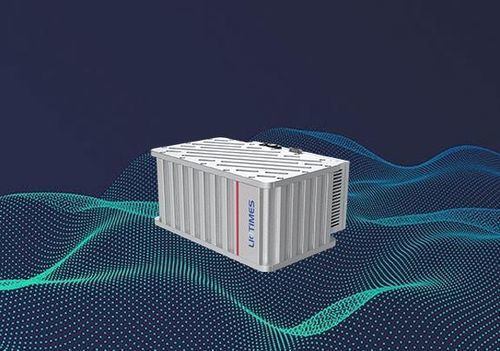

Micro-focus X‑ray source for industrial imaging and non‑destructive testing. Integrates filament power supply, high‑voltage generator, X‑ray tube, control and protection circuits in a compact unit. Designed with anti‑oil leakage and enhanced heat dissipation for improved reliability. Standard RS232 interface and DSP‑based control enable versatile application scenarios and extended tube life. Simple wiring with DB9 connector and power socket.

Key features

• Flexible configuration: selectable digital or analog source modes.
• Simplified operation: single DB9 communication port and a power connector for easy installation and wiring.
• High‑stability design suitable for long‑term continuous operation.
• Integrated compact design: control box and tube head combined for space‑saving installation.

Highlights

• DSP control for precise regulation
• Compact cubic footprint
• Comprehensive protection circuits
• Long X‑ray tube lifespan

Technical specifications

• Input voltage range: 180–240 Vac, 50/60 Hz
• Output voltage: 40–80 kV (adjustable); voltage regulation accuracy 0.1 kV
• Output voltage deviation on X‑ray tube: within 1.5% of set value
• Output voltage ripple: low‑frequency (<1 kHz) <0.5% of rated output (Pk–Pk)
• Input voltage regulation: <0.1%
• Load regulation: ≤0.1% (rated output current, when voltage changes from 40 kV to 80 kV)
• Emission current: 0.3–0.6 mA (rated power 48 W)
• Focus size: 0.8 mm (IEC‑60336)
• Voltage regulation precision: 0.1 kV
• Protection circuits: over‑current, over‑voltage, over‑humidity, over‑power, communication‑fault protection
• Safety certification: complies with UL and CE standards
• Operating mode: continuous or intermittent operation
• Preheat: configurable automatic or manual preheat
• Operating temperature range: 0–40 °C
• Storage temperature range: -20–60 °C
• Humidity: ≤95% RH, non‑condensing
• Mechanical dimensions (W×D×H): 346 × 169 × 148 mm
• Weight: <16 kg
• Radiation filtration (equivalent): 1.5 mm (glass) + 5 mm (oil) + 1.5 mm (plastic)
• Radiation window angle: fan beam 12×65
• Cooling method: forced air cooling
