Portable X-ray source

Brief introduction

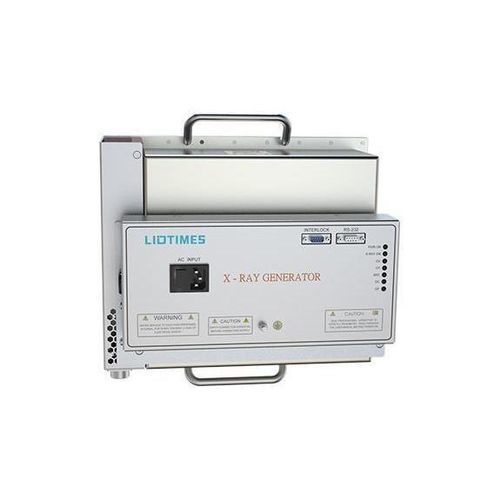

The external large-area radiator and cooling fan allow long-term continuous foreign-object detection operation. The original internal structural design minimizes oil leakage. DSP-based digital control and optimized circuit solutions enable the operator to adjust parameters for different application requirements and help maximize the x-ray tube service life. The product provides a pre-installed detachable handle and a fixed panel on the control box for flexible installation: integrated or split installation.

Key features

• Flexible application: digital or analog X-ray source options
• Simplified operation: single DB9 connector and one power socket for straightforward wiring
• High stability for long-term continuous operation
• Compact integrated design: control box and head combined for space-saving installation
• DSP control for precise parameter adjustment
• Small cubic size
• Enhanced safety protections
• Designed for long service life

Specifications (as listed)

• Output: 80 kV, 160 W
• Input voltage: 180–240 Vac, 50/60 Hz
• Output voltage range/accuracy: 40–80 kV; X-ray tube voltage error ≤ 1.5% of set value
• Voltage ripple: low-frequency (<1 kHz) ripple <0.5% (Pk–Pk)
• Input voltage regulation: <0.1%
• Load regulation: ≤0.1% (rated output current, when output voltage changes from 40 kV to 80 kV)
• Voltage adjustment resolution: 0.1 kV
• Emission current: 0.3–0.6 mA (rated power 48 W)
• Protections: over-current, over-voltage, over-humidity, over-power, communication-fault
• Focal spot size: 0.8 mm (IEC-60336)
• Certifications: meets UL and CE standards
• Operating mode: continuous or intermittent
• Preheat: configurable automatic or manual preheat
• Operating temperature: 0–40 °C
• Storage temperature: -20–60 °C
• Cooling: forced-air cooling
• Radiation filtration: 1.5 mm (glass) + 5 mm (oil equivalent) + 1.5 mm (plastic)
• Radiation window angle: fan beam 12×65
