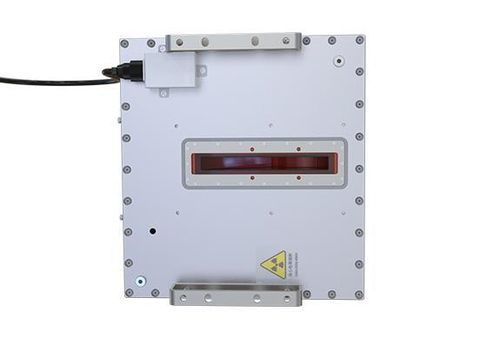

Portable X-ray source

Brief introduction
Compact monoblock X-ray generator integrating filament power supply, high-voltage generator and X-ray tube in a single enclosure. Model 160kV 160W offers simplified installation and a DB9 control/power connector for straightforward system integration.

Key features

• Digital or analog control selectable for flexible integration.
• Minimal wiring: single DB9 control socket and power inlet for easy connection and operation.
• High-stability internal design with digital control for consistent long-term performance.
• Integrated control box and tube head (monoblock) for compact, space-saving installation.
• DSP control; small cubic size; enhanced safety protections; long operational life.

Specifications

• Input voltage range: 180–240 Vac, 50/60 Hz
• Output voltage: 40–80 kV (X-ray tube voltage error ≤ 1.5% of set value)
• Output voltage ripple: LF <1 kHz, <0.5% (Pk–Pk)
• Input voltage regulation: <0.1%
• Load regulation: ≤0.1% (for rated output current when voltage changes from 40 kV to 80 kV)
• Voltage adjustment resolution: 0.1 kV
• Emission current: 0.3–0.6 mA (rated power 48 W)
• Protection: over-current, over-voltage, over-moisture, over-power, communication fault
• Focal spot size: 0.8 mm (IEC-60336)
• Safety compliance: UL, CE
• Operating mode: continuous or intermittent
• Preheat: configurable automatic or manual
• Operating temperature: 0–40 °C
• Storage temperature: -20–60 °C
• Humidity: ≤95%, non-condensing
• Dimensions (W×D×H): 346 × 169 × 148 mm
• Weight: <16 kg
• Radiation filtration: 1.5 mm (glass) + 5 mm (oil) (equivalent) + 1.5 mm (plastic)
• Radiation window angle: fan beam 12 × 65
• Cooling: forced air cooling

Applications

• Portable and stationary radiography systems
• Security and inspection (public security, luggage/cargo screening)
• Industrial nondestructive testing (NDT)
