Portable X-ray source

Product overview

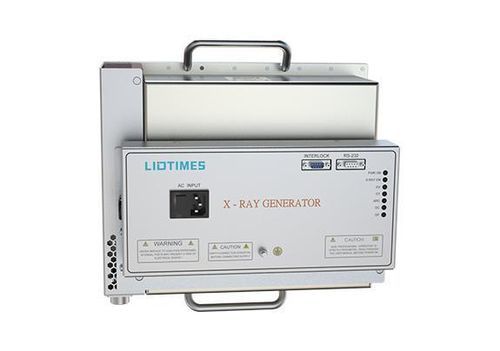

The 80 kV 210 W x-ray generator is designed for continuous foreign-object detection and industrial inspection applications. An external large-area radiator and forced-air cooling enable long-term operation, while internal structural measures minimize oil leakage. DSP-based digital control provides precise voltage and current regulation and simplifies parameter setup for varied application needs. The detachable handle and mountable control panel support integrated or split installation.

Key features

• Flexible configuration: digital or analog source options to match system requirements.
• Simplified wiring: single DB9 connector and power socket for straightforward installation.
• Designed for long-term stable operation with multiple protection circuits.
• Integrated or split installation: compact control box and tube head for flexible mounting.

Highlighted attributes

• DSP control
• Compact cubic size
• Enhanced safety protections
• Extended x-ray tube life

Specifications
Input voltage range: 180–240 Vac, 50/60 Hz
Output voltage range: 40–80 kV
Output voltage deviation on x-ray tube: ≤1.5% of set value
Output voltage ripple: low-frequency ripple (<1 kHz) <0.5% (Pk–Pk) of rated output voltage
Input voltage regulation: <0.1%
Load regulation: ≤0.1% (rated output current, when output voltage changes from 40 kV to 80 kV)
Voltage regulation resolution: 0.1 kV
Emission current: 0.3–0.6 mA (rated power 48 W)
Protection circuits: over-current, over-voltage, over-humidity, over-power, communication fault protection
Focal spot size: 0.8 mm (IEC-60336)
Safety certification: UL, CE
Working mode: continuous or intermittent operation
Preheating: configurable automatic or manual preheat
Operating temperature range: 0–40 °C
Storage temperature range: -20–60 °C
Humidity: ≤95% non-condensing
Mechanical dimensions (W×D×H): 346 × 169 × 148 mm
Weight: <16 kg
Radiation filtration: 1.5 mm (glass) + 5 mm (oil) (equivalent) + 1.5 mm (plastic)
Radiation window angle: fan beam 12 × 65° (equivalent)
Cooling method: forced air cooling

Technical specifications

• Input voltage range: 180–240 Vac, 50/60 Hz
• Output voltage range: 40–80 kV; tube voltage deviation ≤1.5% of set value
• Output ripple: <0.5% (Pk–Pk) @ <1 kHz
• Input voltage regulation: <0.1%
• Load regulation: ≤0.1% across 40–80 kV
• Voltage adjustment resolution: 0.1 kV
• Emission current: 0.3–0.6 mA (rated power 48 W)
• Protection: over-current, over-voltage, over-humidity, over-power, communication fault
• Focal spot: 0.8 mm (IEC-60336)
• Certifications: UL, CE
• Operation: continuous or intermittent
• Preheat: automatic or manual configurable
• Operating temp: 0–40 °C; Storage temp: -20–60 °C; Humidity: ≤95% non-condensing
• Dimensions (W×D×H): 346×169×148 mm; Weight: <16 kg
• Radiation filtration and window: 1.5 mm glass + 5 mm oil + 1.5 mm plastic (equivalent); fan beam 12×65
• Cooling: forced air cooling
