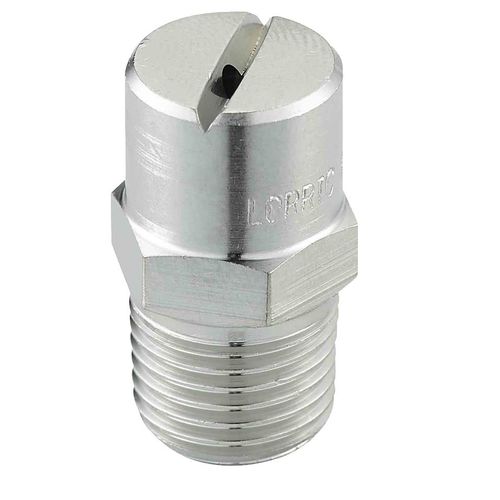

Spray nozzle H series
for cleaningcoolingwashing

spray nozzle
spray nozzle
spray nozzle
spray nozzle
spray nozzle
spray nozzle
spray nozzle
Add to favorites
Compare this product


Characteristics

Function
spray, for cleaning, cooling, washing, humidity
Fluid
for liquids
Stream
flat spray
Material
polypropylene, stainless steel, brass
Other characteristics
male, high-pressure

Description

The spraying type is fan type, and the spray shape is single line and two sides are tapered (tapered edge), which presents a bell curve shape flow field distribution with weaker ends compared to the middle. Single-piece design, if there is frequent maintenance or replacement requirements, it is recommended to use quick install with multiple pieces nozzles. Recommended working pressure: 3.0 kgf/cm² Jet angle tolerance: 3° Flowrate tolerance: ● PP Material: ± 10% @ 3.0 ± 0.1 kgf/cm² ● Other Material: ± 5% @ 3.0 ± 0.1 kgf/cm² Angle tolerance: ● PP Material: ± 10° @ 3.0 ± 0.1 kgf/cm² ● Other Material: ± 5° @ 3.0 ± 0.1 kgf/cm²

Catalogs

No catalogs are available for this product.

See all of lorric‘s catalogs
