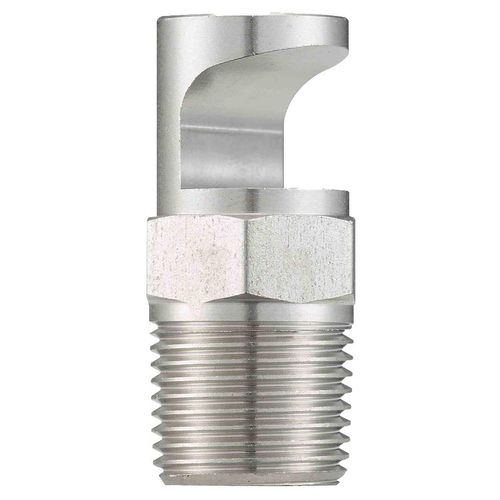

Spray nozzle F series

for cleaningcoolingwashing

The spray pattern is fan type and the spray shape is single. Low-pressure wide-angle nozzle realizes a large-angle coverage area under 1.5kgf/cm² pressure, which is lower than standard fan type 3kgf/cm² operating pressure, and is more suitable for low-pressure working environment. Spray the nozzle at an angle of 75° with respect to the axis of the nozzle. Check that the environment is suitable. The hooked nozzle tip is designed to reflect the water into a fan shape nozzle and greaten particle passage to prevent clogging. Operation pressure is greater than 4kgf/cm² may cause the liquid to overflow without fogging. Recommended working pressure: 1.5 kgf/cm² Flowrate tolerance: ± 10% @ 1.5 ± 0.1 kgf/cm² Angle tolerance: ± 10° @ 1.5 ± 0.1 kgf/cm²
