Characteristics

  • Technology:

    hydrostatic

  • Medium:

    for liquids

  • Other characteristics:

    stainless steel, submersible, with digital display, 4-20 mA, 2-wire, loop-powered, temperature-compensated, flush diaphragm

  • Applications:

    for storage tanks, for industrial applications

  • Process pressure:

    Min.: 0.1 bar (1.45 psi)

    Max.: 10 bar (145.04 psi)

  • Process temperature:

    Min.: -10 °C (14 °F)

    Max.: 70 °C (158 °F)

Description

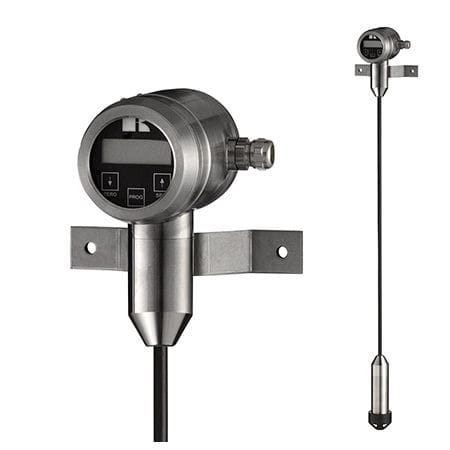

The “Hydrobar” series are submersible level transmitters with a cable or SS tube extension, to measure the level in waterworks, deep wells, underground tanks, concrete bunkers, etc.
The “Hydrobar” transmitters are available as fixed range (type FR) units, or with adjustable zero and span. The Hydrobar ‘I’ is an ‘Intelligent’ adjustable, hydrostatic level transmitter with cable (IP68) for level measurement in water & wastewater, pulp, slurry, chemicals, etc. The zero and span are adjustable by HART® Protocol and PC or HHT.
The Series “2000-Hydrobar” is a complete range of microprocessor based submersible level transmitters for top mounting, with a local display and adjustment by three push buttons.
The zero and span can be calibrated very easily without a test pressure. The display can indicate several chosen engineering units and is also used during programming. Process temperatures can be indicated, and damping times adjusted from 0 to 25 secs
All of the above transmitters are fully temperature compensated and equipped with laser welded strong flush mounted diaphragms resulting in perfect long-term stability.
The “Hydrocer” is a hydrostatic submersible level transmitter with cable (IP 68) for level measurement in water & waste water, pulp, slurry, chemicals, etc. The “Hydrocer” is based on a Capacitive Ceramic sensor / diaphragm and has a Fixed Range (Type FR) and an adjustable version by HART® Protocol, type Hydrocer ‘I’ (accuracy 0.1%) The instrument has active temperature compensation and perfect long term stability.
