ultrasonic level transmitter / for liquids / for solids / HART
METER series

{{requestButtons}}

Characteristics

  • Technology:

    ultrasonic

  • Medium:

    for liquids, for solids

  • Other characteristics:

    HART, compact, 2-wire, with digital display, 4-20 mA, programmable, Modbus, ATEX, IP67

  • Applications:

    for storage tanks

  • Level range:

    Max.: 8 m (26'02")

    Min.: 0.25 m (0'09")

  • Process pressure:

    Max.: 1 bar (14.5 psi)

    Min.: 0.5 bar (7.25 psi)

  • Process temperature:

    Max.: 70 °C (158 °F)

    Min.: -30 °C (-22 °F)

Description

Level measurement and control, data acquisition and monitoring are important for many products and processes in a diverse range of industries including manufacturing, storage and service industries.

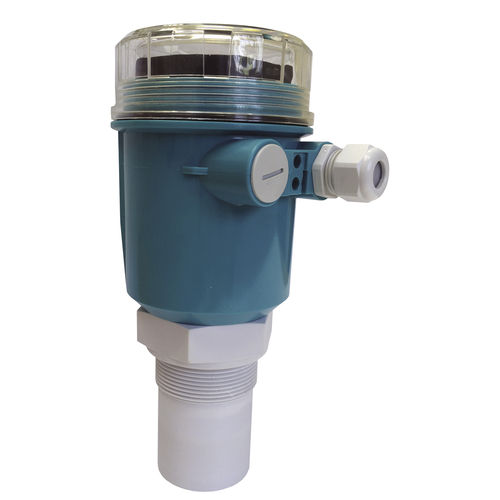

The compact METER Ultrasonic level transmitter is a loop powered 2 wire transmitter able to measure up to a maximum of 8 Metres.
The METER has a removable display and programming module which simply plugs into the transmitter. The Large LCD matrix display allows the user to display either one variable with large digits or two variables with smaller digits from the 5 variables available – Distance in mm, Level in mm, Level %, Output in mA or temperature in ° C. The four push buttons allow the user to easily step through the menu and configure the METER.
A four wire 24vDC version of the METER is available which has 2 relay outputs for alarm or diagnostic functions with 2 wire HART, 2 wire HART ATEX and four wire Modbus versions available. The HART and Modbus options allow remote
calibration and set up. During set up the user can select whether the transmitter is for use on Liquids or Solids and has a built in programmable filter to smooth the response of the sensor.
All electrical connections are to internal push connectors simplifying the installation process.
Specification:
2 Wire Loop Powered 4-20mA transmitter up to 8 Metres operation.
Optional 4 wire 24vDC transmitter with additional 2 relays.
Modbus and Hart communication options.
Removable programming display module.
2” Threaded process connection with optional flanged version available.
LCD Large Matrix display
For full specification please refer to the METER Data sheet.
