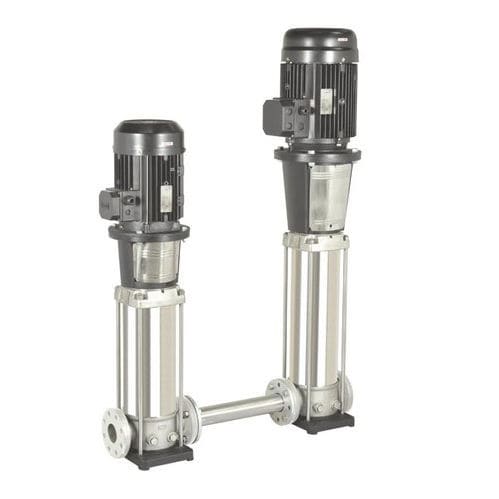

Impeller pump LCR/LCRNH serieswaterwith electric motorself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water
- Operation
- with electric motor
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- discharge, work, suction
- Material
- stainless steel, cast iron
- Protection level
- standard, IP55
- Other characteristics
- mechanical, flange, vertical, seal
- Flow
Max.: 180 m³/h
(6,356.64001 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Head
Max.: 500 m
(1640'05" )Min.: 0 m
(0'00" )- Power
Max.: 75 kW
(101.97 hp)Min.: 0.37 kW
(0.5 hp)
Description
The pump casing shall have material of construction of Cast Iron FG 260 (standard supply) or CF8 (AISI 304), inline suction and discharge port, closed type impeller, stainless steel shaft.
The Pump mechanical shaft seal with following material suitable for 16 bar pressure rating.
The pump suction and delivery flange connection shall be as per PN 16 standard up to 16 bar pump shut off pressure and as per PN25 for pumps with shut off pressure above 16 bar.
The pump shall be coupled with a Totally Enclosed Fan Cooled (TEFC) type induction motor, with F class insulation, S1 duty and IP55 protection, 3 phase, 415volts, 50 Hz and 60 Hz power supply.
The pump construction should enable the rotating parts to be removed and serviced without dismantling the suction and discharge pipe work.
