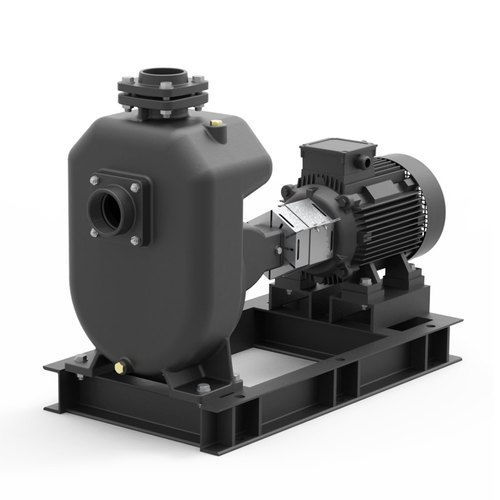

Impeller pump Lbm waterwith electric motorstationary
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water
- Operation
- with electric motor
- Mobility
- stationary
- Domain
- industrial
- Applications
- discharge, work, suction
- Material
- cast iron
- Voltage
- 240 V
- Protection level
- standard
- Other characteristics
- mechanical, multi-stage, axial, radial, open, seal
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 305 m³/h
(10,770.97335 ft³/h)- Head
Min.: 0 m
(0'00" )Max.: 37 m
(121'04" )- Power
Min.: 0.75 kW
(1.02 hp)Max.: 18.5 kW
(25.15 hp)
Description
The pump casing shall be of Cast Iron material grade FG 260 as per IS 210 / ISO 186 and shall have axial suction and radial discharge port..
The pumps shall have non-clogging open type impeller with material of construction of Cast Iron FG 260 (standard supply), CF8 & CF8M.
The pump shaft sealing will be with gland packing except for pump up to 1 hp rating shall be with mechanical shaft seal.
The Motor will be suitable for the following power supply 3 phase, 415 volts, 50 Hz & 1 phase, 240 volts, 50 Hz.
The pump shall have back pull out design so as to enable the rotating parts to be removed and serviced without dismantling the suction and discharge pipe work.
