- LUBI INDUSTRIES LLP

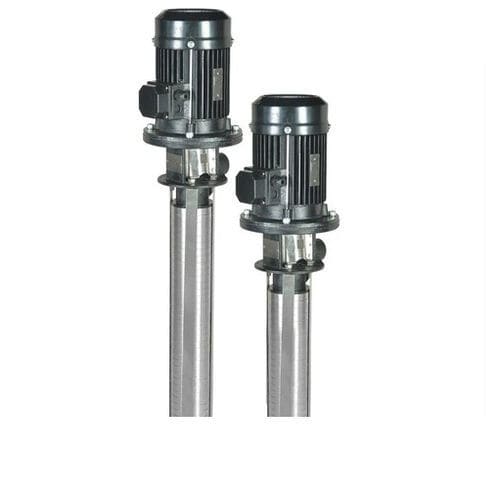

Impeller pump waterwith electric motorself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water
- Operation
- with electric motor
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Material
- stainless steel, cast iron
- Protection level
- immersible
- Other characteristics
- coated
- Flow
Max.: 8.5 m³/h
(300.17467 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Head
Max.: 212 m
(695'06" )Min.: 0 m
(0'00" )- Power
Max.: 5.5 kW
(7.48 hp)Min.: 0.37 kW
(0.5 hp)
Description
These pumps shall be designed to be mounted on coolant lubricant tanks so that the pump end is immersed in the coolant lubricant.
The pump unit hydraulic components are made of stainless steel AISI304. The motors are TEFC induction motors designed to IEC standards. Motors are IE2 efficiency rated.
All cast iron parts shall be CED (cathode electrode deposition) coated for corrosion resistance with uniform coating and controlled deposition thickness of 20-30 microns.
