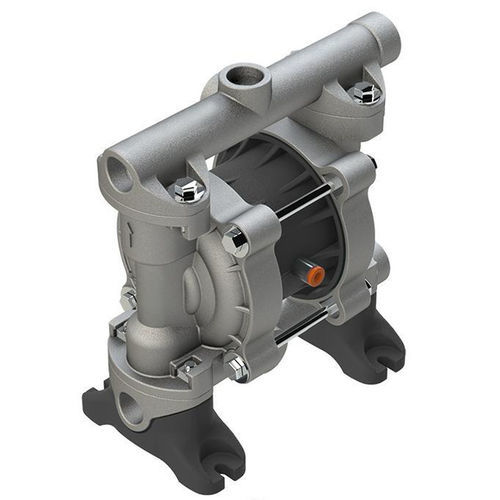

Double-diaphragm pump Evora LDE 050M

oillubricating oilfor liquids

Product information
The LDE 050M AL-NBR is the metal version designed for oils, greases, lubricants and hydraulic fluids. Its aluminium housing provides stability with low weight, while NBR diaphragms ensure reliable sealing and resistance to mineral-oil-containing liquids. Typical applications include workshops, service centres, machine maintenance and industrial maintenance. The compact design facilitates integration and transport.

Brief advantages

• Cost-effective solution for oil-containing media and lubricants
• Suitable for industrial use and easy to maintain
• Simple installation and compact footprint
• Optional ATEX version available for explosive atmospheres

Technical data (table)
Air connection (Ø mm): 6
Air pressure (max. bar): 8
Ball/Seal: NBR
Certification: ATEX Directive (ATEX Directive 2014/34/EU)
Connection (double-diaphragm pump): 1/2" BSP female thread
Delivery head (up to max. m wc)*: 80
Diaphragm (double diaphragm): NBR
Displacement volume (in cm³): 75
Explosion protection: Yes
Flow rate (up to max. l/min)*: 76
Housing/ball seat: Aluminium
Liquid temperature (max °C): 100
Matchcode (DMP): LDE-050M-00-ALN-NNANGRR-00
Max. Solid size (mm): 3.2 - 3.8
Max. Suction height: 9 mWS wet (4 mWS dry)
Operating point (l/min): 30
Viscosity (up to max. mPas)*: 7500

Technical notes
*Maximum flow values measured on test bench with water at approx. 20 °C. Actual flow in service depends on the application, fluid properties and pump configuration. Viscosity values determined with oil. Delivery values measured at pump outlet without hose, nozzle or flowmeter.

Characteristics / technical specifications

• Model: Evora LDE 050M (AL-NBR metal variant)
• Housing material: Aluminium
• Diaphragm material: NBR
• Ball / Seal: NBR
• Air connection Ø: 6 mm
• Maximum air pressure: 8 bar
• Connection: 1/2" BSP female thread
• Maximum delivery head: 80 m wc
• Displacement volume: 75 cm³
• Maximum flow rate: 76 l/min
• Operating point: 30 l/min
• Maximum liquid temperature: 100 °C
• Maximum solid size: 3.2 - 3.8 mm
• Max. suction height: 9 mWS (wet) / 4 mWS (dry)
• Maximum viscosity: 7500 mPas
• Explosion protection / Certification: ATEX Directive 2014/34/EU
• Matchcode (DMP): LDE-050M-00-ALN-NNANGRR-00
