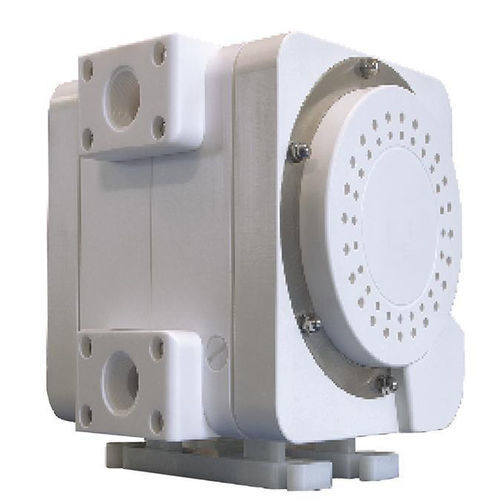

Double-diaphragm pump LDQ Quova 0500

acidfor solventsfor chemicals

Product information
Compact double-diaphragm pump for precise dosing
The LDM Mova 3000 (3") compressed air double-diaphragm pump (also referenced in some configurations as LDQ 0500 / Quova-0500) is designed for precise dosing tasks in cleanroom and chemical environments. With a flow rate of up to 60 l/min, it provides reliable process performance in a small footprint. The standard monoblock housing in PE 1000 offers strong chemical resistance; a full PTFE housing is available where higher chemical compatibility is required. The pump is intended for modular systems, laboratory equipment and small-scale process installations.

Measurement notes and test conditions
The maximum flow is a test-bench value measured with water at approx. 20 °C. Measurement is taken at the pump discharge port without hose, dispensing gun or flow meter. Actual achievable flow depends on the application, fluid properties and pump configuration. Viscosity values were determined with oil.

Typical applications

• Dosing solvents, additives, acids and sensitive chemicals in laboratories
• Coating and surface treatment lines
• Photovoltaic manufacturing processes

Advantages

• Compact design – suitable for modular systems and laboratory racks
• Non-icing air valve for uninterrupted continuous operation
• Low air consumption thanks to an optimized valve system
• Easy maintenance – diaphragm replacement without special tools
• Chemically resistant full PE 1000 housing (PTFE option available) for safe handling of aggressive media

Technical specifications

• Product number: Quova-0500-PE-1000
• Model reference on page: LDM Mova 3000 (3") - PE100 (variants may reference LDQ 0500 / Quova-0500)
• Air pressure (max): 8 bar
• Connection (double-diaphragm pump): 1/2" BSP female
• Delivery head (up to max.): 80 m wc
• Flow rate (up to max.): 60 l/min
• Operating point (typical): 30 l/min
• Housing material: PE 1000 (PTFE option available)
• Liquid temperature (max): 60 °C
• Maximum solid size: 6 mm, 7.5 mm
• Max. suction height: 9 mWS wet (5 mWS dry)
• Viscosity (up to max.): 5000 mPas
• Weight: 6.8 kg
• Dimensions (HxLxP): 186 mm x 220 mm x 210 mm
• Release date: 2026-06-11
