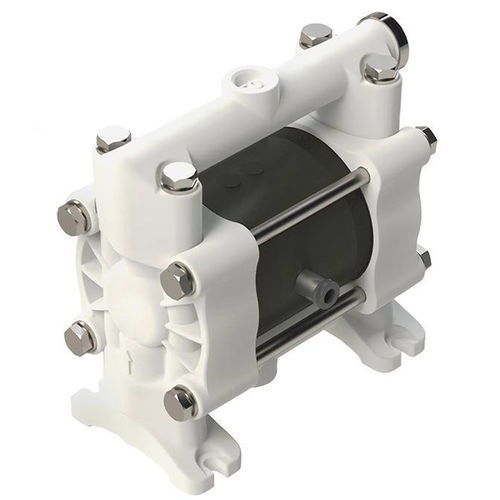

Double-diaphragm pump Evora LDE 025M

for alkalisacidfor solvents

Product information
The Evora LDE 025M with PP housing and NBR/PTFE diaphragm is a compact, cost-effective air-operated double-diaphragm pump for chemical environments. The polypropylene housing provides good chemical resistance while the PTFE-backed diaphragm extends compatibility with more demanding media. Suitable for mild acids and alkalis, many alcohols, water-based solvents and chemically contaminated process fluids provided they do not contain abrasive solids. PP offers good chemical and mechanical resistance but is not suitable for petroleum-based solvents. The oil-free compressed-air operation enables clean transfer and low maintenance, making the pump well suited for compact dosing and transfer systems.

Applications and advantages

• Compact dosing and transfer systems where low weight is required
• Oil-free operation for contamination-sensitive fluids
• Low maintenance and simple installation
• Entry-level diaphragm pump for safe chemical transfer

Key benefits

• Cost-effective option for many standard chemicals
• PTFE-backed diaphragm for improved media resistance
• Suitable for compact chemical and wastewater applications

Technical specifications

• Brand: Lutz Pumpen GmbH
• Product number: 5260-070
• Model: Evora LDE 025M
• Housing / ball seat: PP + GFR
• Diaphragm: NBR + PTFE
• Fluid connection (double-diaphragm pump): 1/4" BSP female
• Air connection (Ø mm): 4
• Air pressure (max. bar): 8
• Operating point (l/min): 5
• Flow rate (up to max. l/min): 10.8
• Delivery head (up to max. m wc): 80
• Liquid temperature (max °C): 60
• Viscosity (up to max. mPas): 3500
• Displacement volume (in cm³): 35
• Max. solid size (mm): 1.5
• Max. suction height: 9 mWS wet (3 mWS dry)
• Explosion protection: No
• Weight: 0.7 kg
• Dimensions (H x W x L): 130 mm x 230 mm x 230 mm
• Matchcode (DMP): LDE-025M-00-PPN-RTPTGRR-00
• Release date: 2026-06-11
