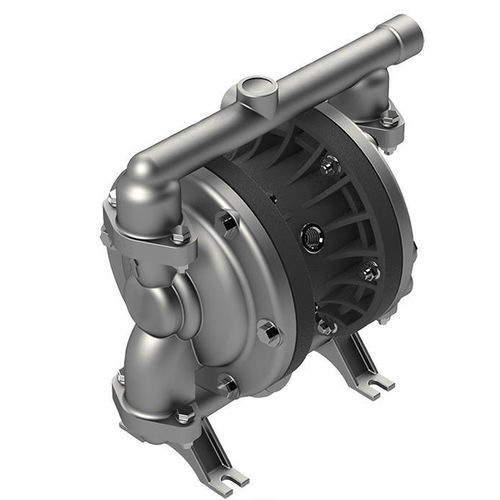

Double-diaphragm pump Evora LDE 1000

for alkalisacidfor solvents

Overview
The LDE 1000 VA-TPE/PTFE combines a V4A stainless steel housing with TPE-PTFE sandwich diaphragms, providing chemical resistance for light acids, alkalis, alcohols and solvents. An ATEX/Ex version is available for potentially explosive atmospheres.

Application & benefits
This air-operated double-diaphragm pump is suited where chemical resistance alongside a robust metal design is required—typical in chemical processing, industrial cleaning and as a cost-effective option for non-hygienic food-industry applications. The stainless steel housing gives increased mechanical stability under demanding conditions.

Key features

• Stainless steel housing (V4A / 1.4404)
• TPE + PTFE sandwich diaphragms
• PTFE ball/seal
• 1" BSP female fluid connections
• Dry-run safe design
• ATEX / Ex version available

Brief advantages

• Robust stainless-steel construction for industrial use
• Suitable for solvents and cleaning fluids
• Ex-option for use in explosive atmospheres

Additional product information
The pump provides a cost-efficient stainless-steel double-diaphragm solution for conveying and dosing solvents, mild acids and alkalis in industrial cleaning and chemical processes.

Technical specifications

• Product number: 5233-100
• Model / Matchcode (DMP): LDE-1000-EX-VAX-YTSTGRR-00
• Series: Evora LDE 1000
• Air pressure (max. bar): 8
• Connection: 1" BSP female thread
• Delivery head (max. m wc): 80 m wc
• Flow rate (max. l/min): 175 l/min
• Operating point (l/min): 105 l/min
• Displacement volume: 220 cm³
• Diaphragms: TPE + PTFE
• Ball / Seal: PTFE
• Housing material: V4A / 1.4404 (stainless steel)
• Max. solid size: 6 mm
• Max. suction height: 9 mWS (wet) / 4.5 mWS (dry)
• Liquid temperature (max °C): 100 °C
• Viscosity (max. mPas): 10000 mPas
• Explosion protection: ATEX (Directive 2014/34/EU)
• Certification: ATEX
• Weight: 11 kg
• Dimensions (H x W x L): 385 mm x 360 mm x 260 mm
• Release date: 2026-06-11
