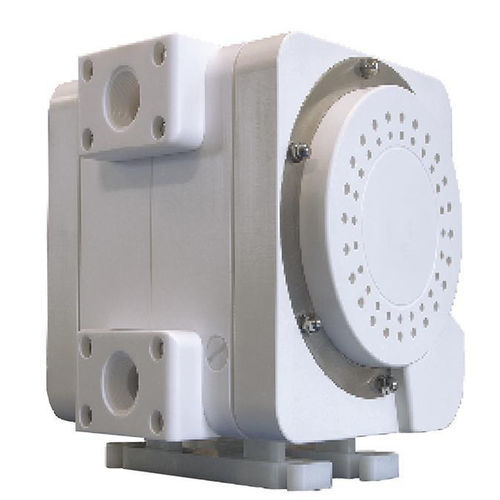

Double-diaphragm pump LDQ Quova 1500

for solventsfor chemicalsfor liquids

Product information
The LDQ Quova 1500 air-operated double diaphragm pump is designed for high flow applications up to 350 l/min. It offers chemical-resistant materials and configurable housings (PTFE standard, PE 1000 variant) for demanding processes in chemical, semiconductor and surface treatment industries.

Typical applications

• Transfer of highly viscous media
• Handling solvents and additives in large-volume systems
• Use in potentially explosive atmospheres (Zone 2)

Advantages

• High throughput: up to 350 l/min
• Non-icing air valve for long-term process stability
• Low maintenance thanks to individually detachable diaphragms
• ATEX certification suitable for Zone 2
• Full PTFE design available with PE 1000 option for tailored chemical resistance

Technical properties
Air connection (pump): 1/2" BSP
Max. air pressure: 8 bar
Process connection (pump): 1 1/2" BSP
Delivery head (max): 80 m wc
Flow rate (max): 350 l/min
Housing material: PE 1000 (variant: PTFE)
Max. liquid temperature: 60 °C
Max. solid size: 19 mm
Max. suction height: 9 mWS (wet) / 5 mWS (dry)
Operating point (typical): 225 l/min
Max. viscosity handled: up to 10,000 mPas

Characteristics / Technical specifications

• Model / Series: LDQ Quova 1500
• Product number: Quova-1500-PE-1000
• Flow rate (max): 350 l/min
• Operating point (typical): 225 l/min
• Delivery head (max): 80 m wc
• Maximum air pressure: 8 bar
• Air connection: 1/2" BSP
• Process connection: 1 1/2" BSP
• Housing material: PE 1000 (option: PTFE)
• Max. liquid temperature: 60 °C
• Max. solid size: 19 mm
• Max. suction height: 9 mWS (wet) / 5 mWS (dry)
• Max. viscosity handled: up to 10,000 mPas
• ATEX certification: Zone 2
• Weight: 27.5 kg
• Dimensions (H x W x L): 310 mm x 330 mm x 381 mm
• Release date (meta): 2026-06-11
