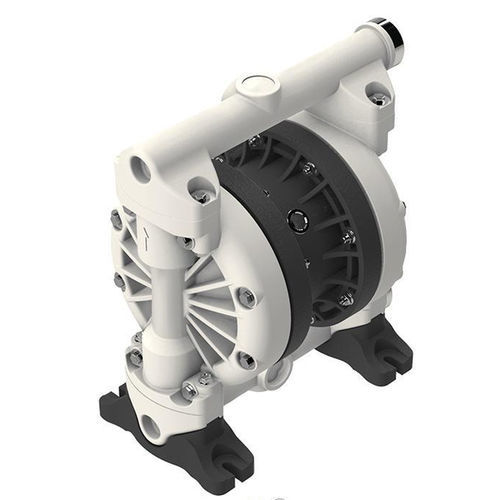

Double-diaphragm pump Evora LDE 100M

for solventsfor hydrocarbonsalcohol

Product information
The Evora LDE 100M PP-TPV/PTFE is a chemical-resistant, air-operated double-diaphragm pump designed for process applications. Equipped with PTFE‑Santoprene sandwich diaphragms and a PP + GFR housing, it is suitable for solvents, alcohols and chlorinated hydrocarbons encountered in chemical and electroplating industries. The oil-free compressed-air drive and high seal integrity enable clean, safe operation with aggressive media, making the unit suitable for laboratory and production environments.

Key benefits

• PTFE composite diaphragms for enhanced chemical resistance
• Suitable for solvents, alcohols and chlorinated media
• Low-maintenance, energy-efficient operation

Features

• ATEX option available
• High flow capacity up to 130 l/min
• Maximum discharge head up to 80 mWC

Technical specifications

• Air connection (Ø mm): 4
• Air pressure (max. bar): 8
• Ball / seal: PTFE
• Connection (double-diaphragm pump): 1" BSP female thread
• Delivery head (up to max. m WC): 80 mWC
• Diaphragm (double diaphragm): TPV + PTFE
• Displacement volume (in cm³): 120 cm³
• Explosion protection: No
• Flow rate (up to max. l/min): 130 l/min
• Housing / ball seat: PP + GFR
• Liquid temperature (max °C): 60 °C
• Matchcode (DMP): LDE-100M-00-PPN-LTPTGRR-00
• Max. solid size (mm): 5.5 mm
• Max. suction height: 9 mWS wet (4 mWS dry)
• Operating point (l/min): 75 l/min
• Viscosity (up to max. mPas): 7500 mPas
• Weight: 4.8 kg
• Dimensions (H x W x L): 330 mm x 325 mm x 190 mm
• Product number: 5280-010
