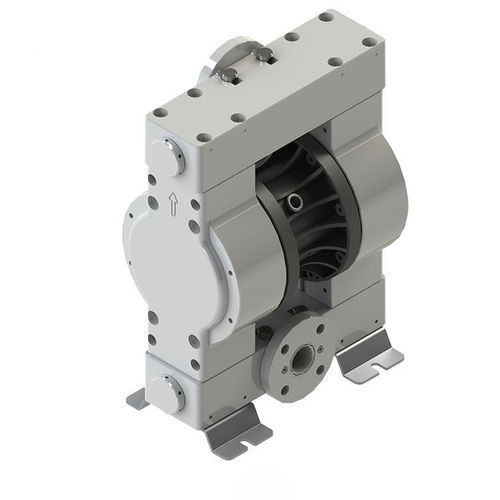

Double-diaphragm pump LDS Svolta 1500

slurrywastewaterfor chemicals

Product information
The Lutz LDS Svolta 1500 is an air-operated double diaphragm pump designed for constant flow with highly viscous, abrasive or chemically aggressive media. Block-milled in PE 1000, the pump is abrasion- and chemical-resistant. Its modular block design enables quick maintenance and allows indoor or outdoor installation.

Typical areas of application

• Chemical and petrochemical industry
• Construction and ceramics (slurries, suspensions, adhesives)
• Metalworking and electroplating
• Wastewater treatment & recycling
• Offshore and seawater applications

Your advantages at a glance

• Flow up to 370 l/min
• Block-milled housing in PE 1000
• Resistant to abrasion, corrosion and pressure peaks
• Temperature-resistant up to 60 °C
• Service-friendly modular design for fast maintenance

Technical specifications

• Model: LDS Svolta 1500
• Product number: Svolta-1-1-2
• Brand: Lutz Pumpen GmbH
• Housing material: PE 1000
• Flow rate (max): 370 l/min
• Operating point: 200 l/min
• Displacement volume: 670 cm³
• Delivery head (max): 80 m wc
• Air connection: 1/2" BSP
• Liquid connection: 1 1/2" BSP
• Air pressure (max): 8 bar
• Liquid temperature (max): 60 °C
• Viscosity (up to max): 10,000 / 25,000 mPas
• Max. solid size: 7 mm
• Max. suction height: 9 mWS wet (4 mWS dry)
• Weight: 32 kg
• Dimensions (H x W x L): 605 mm x 230 mm x 443 mm
• Certification: FDA compliant
