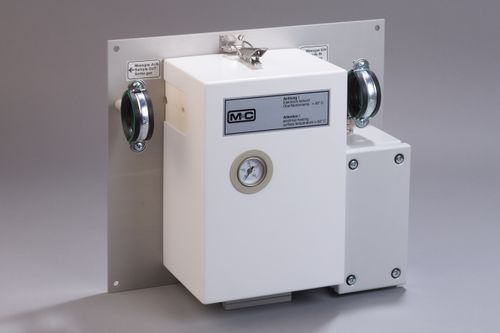

Heated gas filter FT-xx-H2 series

heated gas filter
heated gas filter
heated gas filter
Add to favorites
Compare this product


Characteristics

Fluid specification
heated gas
Filtration size

0.1 µm, 0.3 µm

Operating pressure

4 bar (58.015 psi)

Description

- Electrically heated universal filter with integrated thermostat - Heated up to max. +180 °C [+356 °F] - Filter head made of carbon-reinforced PTFE - Deep-acting glass filter element with a filter porosity of 3 μm - Control thermostat with high-temperature limiter and low-temperature alarm contact - With thermally insulated protective housing - On a heat-decoupled mounting plate for wall mounting - With heated connection fittings to prevent cold bridges - 2 gas connections: female threaded G 1/4" - Power: 230 V - Material of sample-contacting parts: glass, carbon-reinforced PTFE, Viton®
